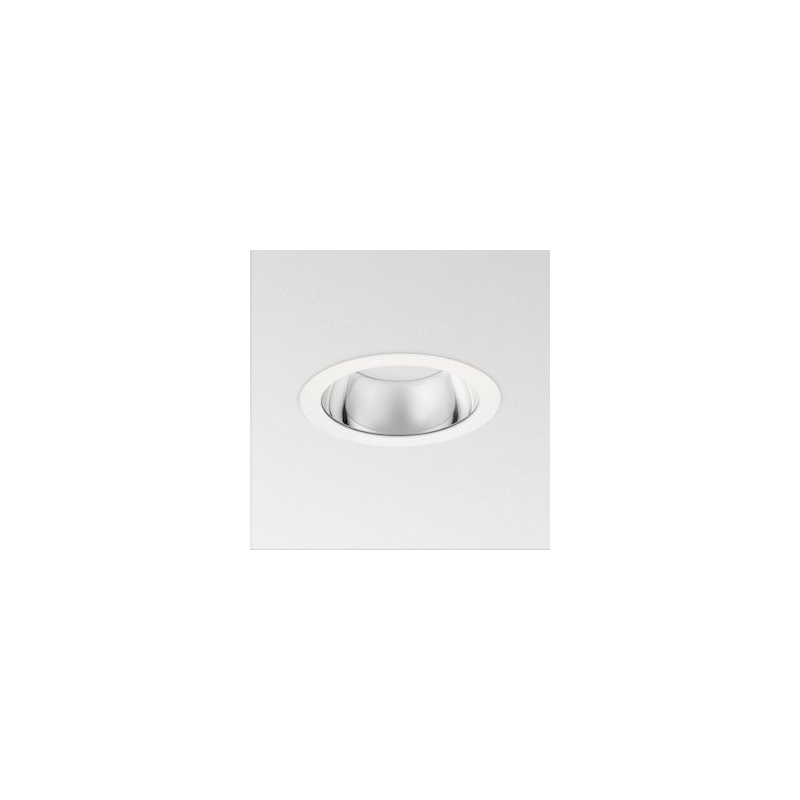

CoreLine downlight LED D150 DN140B 840 On/Off UGR22 10W 1000lm IP54 50000h L70

Reference 326054

EAN 8710163326054

Brand Philips

Product line: Coreline, Protection class (IP): IP54, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K

€149.05

€120.73 Save 19%

Tax included

Quantity

Out-of-Stock

100% secure payments

Description

Description

Product characteristics

CoreLine downlight LED D150 DN140B 840On/Off UGR22 10W1000lm IP54 50000h L70

Main features

Product line: Coreline
Protection class (IP): IP54
Color rendering index (CRI): 80 .. 89
Color temperature: 4000 K
Reference: Philips 326054 / EAN: 8710163326054

Philips

Find all the products of the brand Philips at the best price on the store domeashop.com.

See all products Philips

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Philips
Reference	326054
EAN	8710163326054
Customs code	94051140
Product line	Coreline

Design and finish

Case color	Multicolor
Material of the glass	Glass transparent
Material	Aluminum

Technical specifications

Suitable for ceiling mounting	Yes
Suitable for surface mounting	No
Suitable for surface mounting	No
Suitable for flush mounting	Yes
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	No
Suitable for crossbar mounting	No
Suitable for pendant lights	No
Integrated emergency power supply	No
Beam angle	Extensive beam 40-80°
Device	LED driver constant current
Exchangeable control unit	Yes
Equipment supplied	Yes
With sensor of light	No
Class electric	I
Color of light	White
Start of phase break	No
End of phase break	No
Nominal current of the LED at constant current	125 mA
Integrated diameter	155 mm
Rated life L70/B10 at 25°C	46000 h
Rated life L70/B50 at 25°C	50000 h
Rated life L80/B10 at 25°C	32000 h
Rated life L80/B50 at 25°C	35000 h
Rated life L90/B10 at 25°C	16500 h
Rated life L90/B50 at 25°C	18000 h
Luminous efficacy of the lamp	116 lm/W
Luminaire efficiency	106 lm/W
Light distribution element	Reflector
Light emission	Direct
Glare assessment (UGR)	22
Power factor (cos phi)	0.95
Luminous flux (Lumen)	1100 lm
Effective luminous flux	1100 lm
Photobiological risk group according to EN 62471	GR1
Installation height/depth	200 mm
Protection class (IP)	IP54
Protection class against impacts (IK)	IK02
Color rendering index (CRI)	80 .. 89
Intensity	950 cd
Wall mounting	No
Number of lamps/modules	1
Number of poles	2
Max. number of luminaires per circuit breaker B16	24
Max. number of luminaires per circuit breaker C16	40
Fire protection "D"	No
Accepted lamp power	--- W
System power	9.5 W
Reflector	Ultra glossy
Regulability	Not adjustable
Light distribution	Symmetrical
Wire surface	0.75 mm²
Connectable conductor section	0.75...1.5 mm²
Light source included	Yes
Brushed surface	No
Harmonic distortion rate	0.2
Nominal room temperature according to IEC 62722-2-1	-20...40 °C
Color temperature	4000 K
Nominal voltage	220...240 V
Glow-wire test according to IEC 60695-2-11	850 °C - 30 s
Surface treatment	Powder coated
Type	LED not interchangeable
Type of wiring	Suitable for through-wiring
Type of connection	Flat plug
Type of voltage	AC
Color uniformity (mcAdam ellipse)	SDCM5
Variation according to the order	Yes
