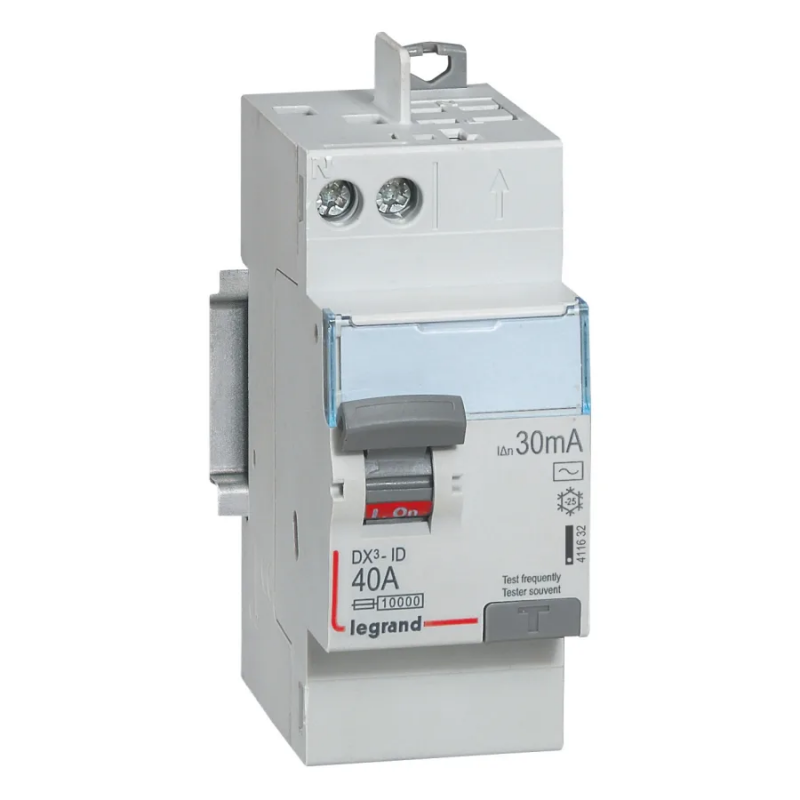

| Manufacturer | Legrand |
| Reference | 411632 |
| EAN | 3245064116329 |
| Warranty | 2 years |
| Customs code | 85363030 |
| Product line | Dx³ |
| Short-circuit resistance (Icw) | 10 kA |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 44 mm |
| Size (according to DIN 43880) | 1 |
| With locking device | Yes |
| Calibre | 40 A |
| Degree of pollution | 2 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| RAL number | 7035 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 0.75 .. 50 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 .. 60 °C |
| Tension | 230 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 250 V |
| Shock current resistance | 0.25 kA |
| Type of installation | DIN rail |
