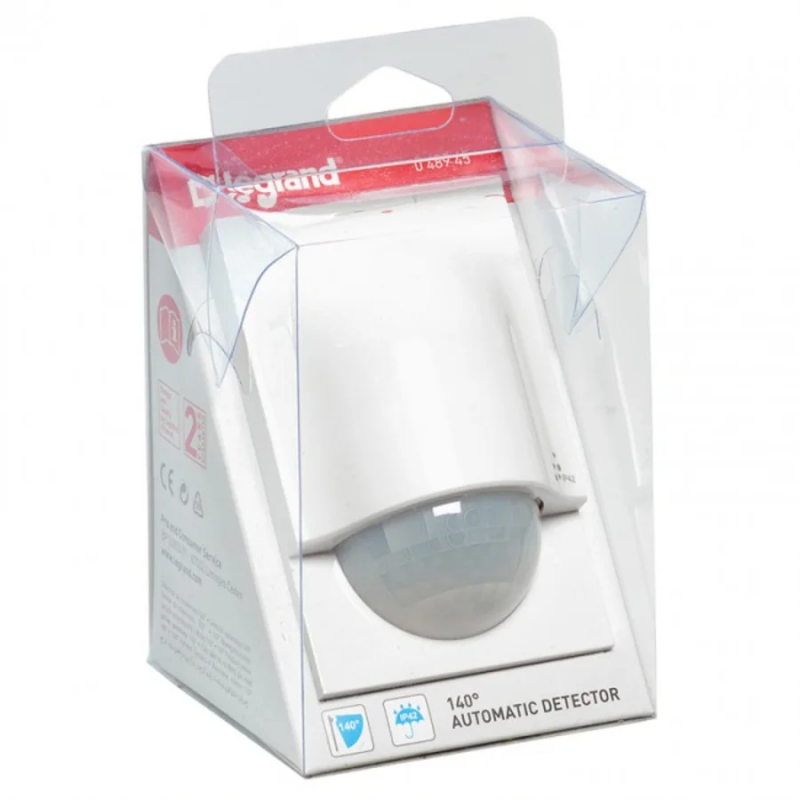

Motion detector eco 1 - 3 wire - fastening projecting wall - Blister
048945
3414970630346
Color: White, Product line: Mosaic, Protection class (IP): IP42, Material: Plastic
Description
Product characteristics
Motion detector eco 1 - 3 wire - fastening projecting wall - Blister
IP42
main features
- Color: White
- Product line: Mosaic
- Protection class (IP): IP42
- Material: Plastic
- reference: Legrand 048945 / EAN: 3414970630346
Find all the products of the brand Legrand at the best price on the store domeashop.com.
See all products Legrand
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..
Technical specifications
Product information
| Manufacturer | Legrand |
| Reference | 048945 |
| EAN | 3414970630346 |
| Warranty | 2 years |
| Customs code | 85365080 |
| Product line | Mosaic |
Design and finish
| Color | White |
| Surface finish | Glossy |
| Material | Plastic |
Electrical information
| Nominal voltage | 240 V |
| Type of voltage | AC |
Dimensions and weight
| Height | 114 mm |
| Width | 77 mm |
| Depth | 48 mm |
Technical specifications
| Angle de détection horizontal | 140 ° |
| Self-learning brightness function | No |
| Detection field of ground diameter | 8 m |
| Running time min. | 5 s |
| Frequency | 50 .. 60 Hz |
| Optimum mounting height | 2.5 m |
| Protection class (IP) | IP42 |
| Protection class against impacts (IK) | IK04 |
| Max. span width | 3 m |
| Adjustable trigger brightness | Yes |
| Model type | Motion sensor |
| RAL number | 9006 |
| Max. detection range at H 2.5 | 8 m |
| Halogen-free | Yes |
| Temperature | 35 .. -5 °C |
| Surface treatment | Untreated |
| Type of sensor | Infrared |
| Type of installation | Projecting |
