| Manufacturer | Hager |

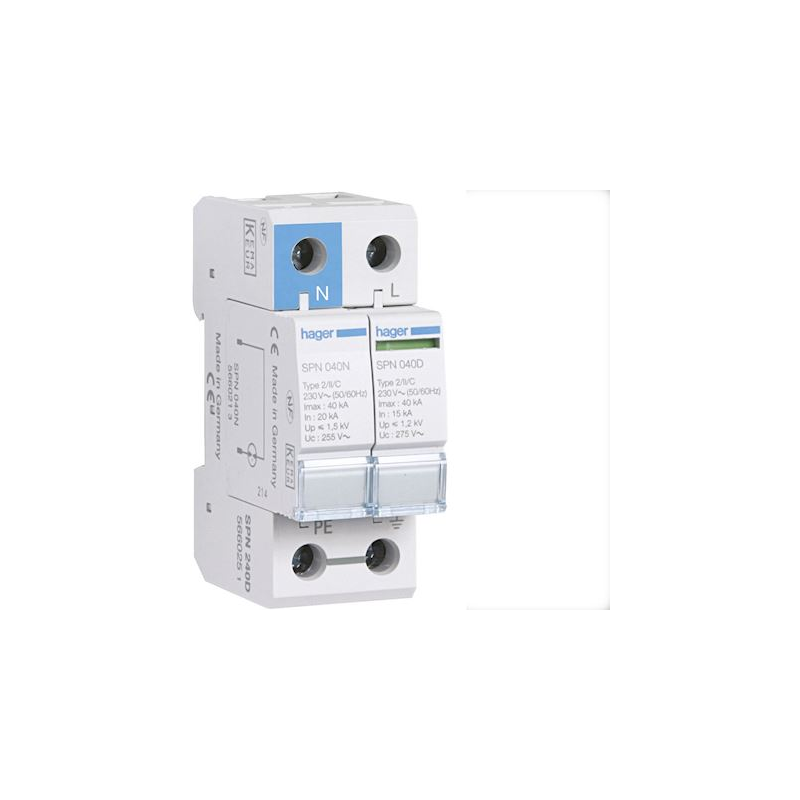

| Reference | SPN240D |
| EAN | 3250615660251 |
| Warranty | 2 years |
| Customs code | 85354000 |
| Product line | Sp |
| With remote signaling contact | No |
| Test class type 2 | Yes |
| Max. discharge shock current (8/20) | 40 kA |
| Nominal discharge current (8/20) | 15 kA |
| Lightning current (10/350) | 40 kA |
| Protection class (IP) | IP20 |
| Level of protection L-N | 1.35 kV |
| Level of protection N-PE | 1.5 kV |
| Short-circuit resistance (Isccr) | 25 kA |
| Max. flexible conductor cross-section (fine thread) | 25 mm² |
| Max. rigid conductor cross-section (single wire/multi wire) | 35 mm² |
| Signalling at the device | Optics |
| Highest direct voltage CA | 275 V |
| Nominal voltage CA | 230 V |
| Type of installation | Top-hat rail 35mm |
| Up | 1.2 kV |
Reference: SPB440R
Lightning arrester 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA remote signalling
Reference: SPB465R
Lightning arrester 4P T2 TNS/TT Uc 320V In 20kA Imax 65kA remote signalling
