• -19%

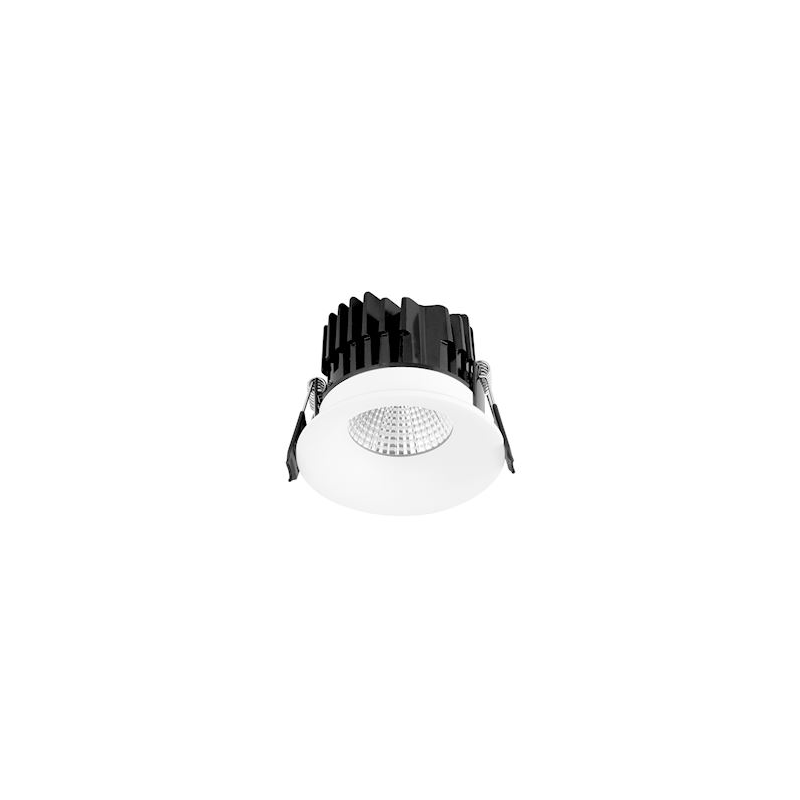

CurveE - spot light fixed B-lum RE2020 10mm IP44 10W 60° 830 dimmable. DALI

ENDLB101DDA30
5056102018813
Product line: Curvee, Protection class (IP): IP44, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€263.33
€213.30 Save 19%
Tax included
Quantity
Out-of-Stock

100% secure payments
Description

Product characteristics

CurveE - spot light fixed B-lum RE2020 10mm IP44 10W 60° 830 dimmable. DALI
Color temperature
3000K
Beam angle
Extensive beam 40-80°
Luminous flux (Lumen)
920lm
Protection class (IP)
IP44
Class electric
class II
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
19

main features

  • Product line: Curvee
  • Protection class (IP): IP44
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: Switch Lite ENDLB101DDA30 / EAN: 5056102018813
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSwitch Lite
ReferenceENDLB101DDA30
EAN5056102018813
Customs code94051190
Product lineCurvee
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Diameter80 mm
Embedding diameter72 mm
Height/depth60 mm
Installation height/depth60 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Equipment suppliedYes
With sensor of lightNo
Integrated diameter80 mm
Luminaire efficiency92 lm/W
Light emissionIndirect
Glare assessment (UGR)19
Power factor (cos phi)0.9
Luminous flux (Lumen)920 lm
Effective luminous flux920 lm
Protection class (IP)IP44
Protection class against impacts (IK)IK02
Wall mountingNo
Fire protection "D"No
Accepted lamp power10 W
System power10 W
RegulabilityNot adjustable
Light distributionSymmetrical
Color temperature3000 K

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Aurora ENDLB101DDA30
documentationEnergy sheet - Aurora ENDLB101DDA30
documentationProduct sheet - Aurora ENDLB101DDA30
documentationInstructions - Aurora ENDLB101DDA30
