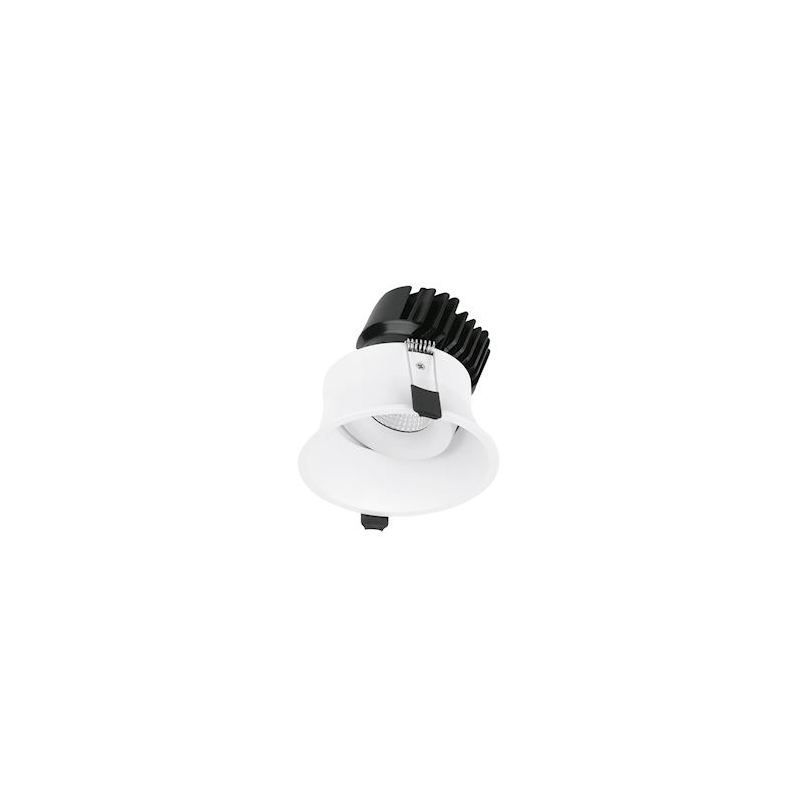

CurveE - spot light basc low luminance 240V 15W 45° 940 dimmable white

ENDLB152AD40
5056102027198
Product line: Curvee, Protection class (IP): IP44, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€118.91
Tax included
Quantity
Out-of-Stock

100% secure payments
Close
Description

Product characteristics

CurveE - spot light basc low luminance 240V 15W 45° 940 dimmable white
Color temperature
4000K
Beam angle
Extensive beam 40-80°
Luminous flux (Lumen)
1200lm
Protection class (IP)
IP44
Class electric
class III
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
19

main features

  • Product line: Curvee
  • Protection class (IP): IP44
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Switch Lite ENDLB152AD40 / EAN: 5056102027198
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSwitch Lite
ReferenceENDLB152AD40
EAN5056102027198
Customs code94051190
Product lineCurvee
Design and finish
Case colorBlack
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricIII
Nominal voltage220 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Diameter110 mm
Embedding diameter105 mm
Height/depth102 mm
Installation height/depth102 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Equipment suppliedYes
With sensor of lightNo
Integrated diameter110 mm
Luminaire efficiency80 lm/W
Light emissionIndirect
Glare assessment (UGR)19
Power factor (cos phi)0.85
Luminous flux (Lumen)1200 lm
Effective luminous flux1200 lm
Protection class (IP)IP44
Protection class against impacts (IK)IK02
Wall mountingNo
Fire protection "D"No
Accepted lamp power15 W
System power15 W
RegulabilityNot adjustable
Light distributionSymmetrical
Color temperature4000 K

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Aurora ENDLB152AD40
documentationEnergy sheet - Aurora ENDLB152AD40
documentationProduct sheet - Aurora ENDLB152AD40
documentationProduct sheet - Aurora ENDLB152AD40
documentationInstructions - Aurora ENDLB152AD40
