Porthole LED slim oval 20W 4000K 1350lm IP65 IK10 cast aluminium vandal-proof

140801
8714681408018
Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€131.03
€104.82 Save 20%
Tax included Stock: 16 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.
Quantity
In stock (16 u)

100% secure payments
Close
Description

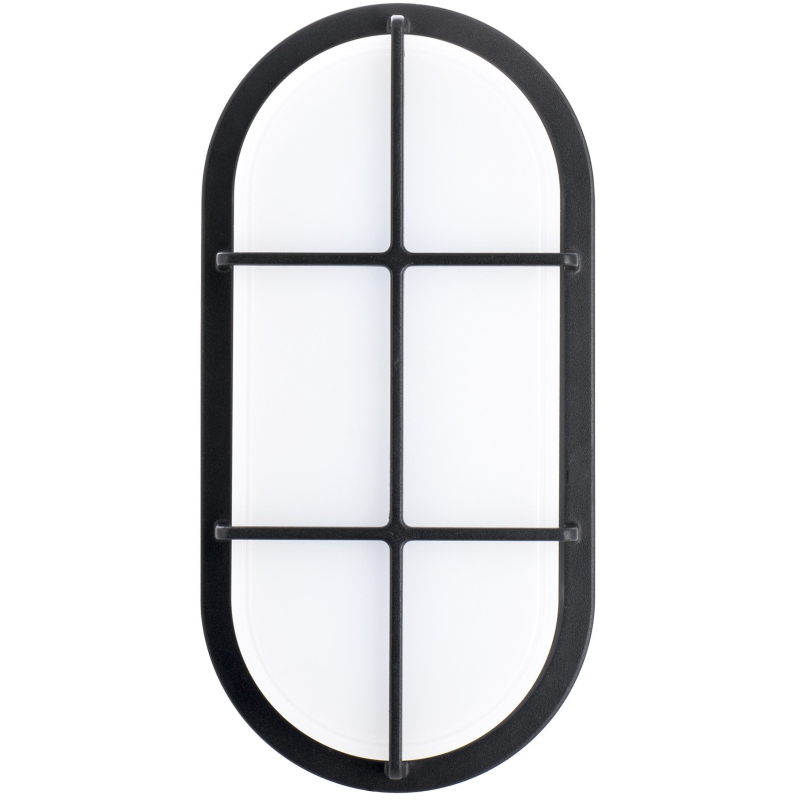

Porthole LED slim oval 20W 4000K 1350lm IP65 IK10 cast aluminium vandal-proof - 140801

Porthole LED slim oval 20W 4000K 1350lm IP65 IK10 cast aluminium vandal-proof
Color temperature
4000K
Beam angle
very extensive beam +80°
Protection class (IP)
IP65
Class electric
class I
Color rendering index (CRI)
80 .. 89

main features - Bailey 140801

  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Bailey 140801 / EAN: 8714681408018
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerBailey
Reference140801
EAN8714681408018
Customs code94051190
Design and finish
Case colorBlack
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth52 mm
Width125 mm
Length248 mm
Technical specifications
DeviceNo required
Exchangeable control unitNo
Rated life L70/B50 at 25°C30000 h
Light emissionDirect
Power factor (cos phi)0.7
Effective luminous flux1350 lm
Protection class (IP)IP65
Protection class against impacts (IK)IK10
Intensity420 cd
Wall mountingYes
Number of poles3
Accepted lamp power20 .. 20 W
System power20 W
Light distributionSymmetrical
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-20 °C
Color temperature4000 K
TypeInterchangeable LED
Type of wiringTermination
Color uniformity (mcAdam ellipse)SDCM5
Interface
Control via bluetoothNo
