• -20%

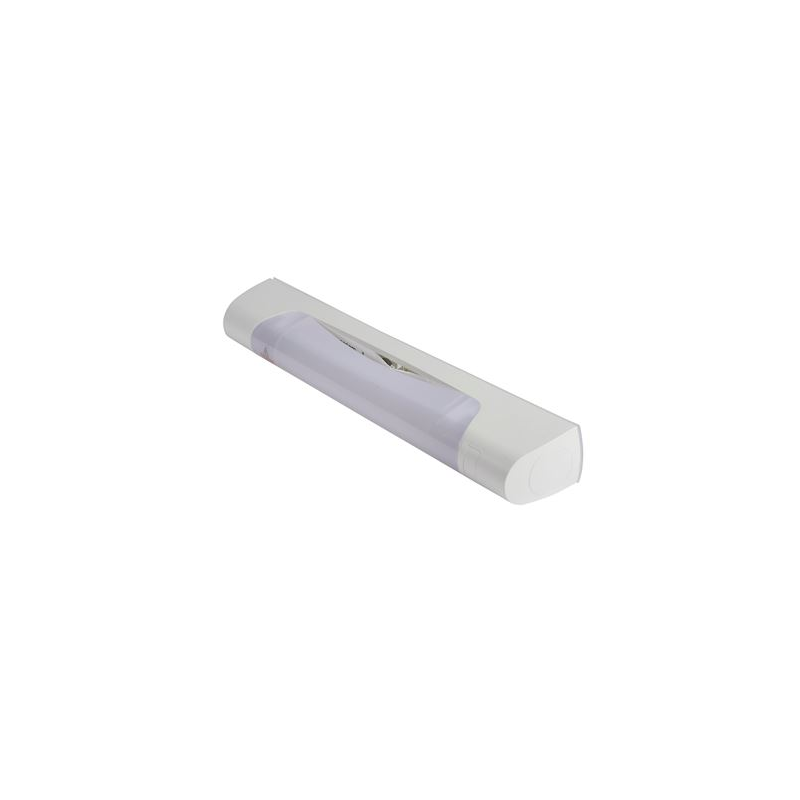

Applique standard 470mm IP24 and IK04 Prismaline equipped with tube LED S19

SL189802
3292290507858
Product line: Prismaline, Protection class (IP): IP24, Color rendering index (CRI): 80 .. 89, Color temperature: 2700 K
€112.68
€90.14 Save 20%
Tax included Delivery within 18 working days in Europe - Price for 1u.
Quantity
On order / 18 days

100% secure payments
Close
Description

Product characteristics

Wall light standard 470mm IP24 and IK04 Prismaline equipped with tube LED S19
Color temperature
2700K
Beam angle
diffuse beam
Protection class (IP)
IP24
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features

  • Product line: Prismaline
  • Protection class (IP): IP24
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 2700 K
  • reference: Sarlam SL189802 / EAN: 3292290507858
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSarlam
ReferenceSL189802
EAN3292290507858
Customs code94051140
Product linePrismaline
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage230 V
Type of voltageAC/DC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth77 mm
Width60 mm
Length470 mm
Technical specifications
Suitable for pendant lightsNo
DeviceNo required
With sensor twilightYes
With sensor of lightYes
With sensor of movementYes
Energy efficiency class of the supplied exchangeable lampA+
Energy efficiency class of the supplied lampA++, A+, A (LED)
Max. energy efficiency class of the exchangeable lampA+
Minimum energy efficiency class of the exchangeable lampA+
Start of phase breakNo
End of phase breakNo
Rated current35 mA
Nominal current of the LED at constant current35 mA
Rated life L70/B10 at 25°C25000 h
Luminaire efficiency58 lm/W
Light distribution elementDiffuser
Light emissionDirect
Power factor (cos phi)0.87
Effective luminous flux480 lm
Protection class (IP)IP24
Protection class against impacts (IK)IK04
Wall mountingYes
Number of lamps/modules1
Number of poles2
Accepted lamp power7 W
System power8.25 W
Light distributionSymmetrical
Wire surface2.5 mm²
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-125 .. 5 °C
Color temperature2700 K
Glow-wire test according to IEC 60695-2-11750 °C - 30 s
TypeInterchangeable LED
Type of wiringSuitable for through-wiring
Type of connectionScrew terminal
Type of connectionScrew terminal
