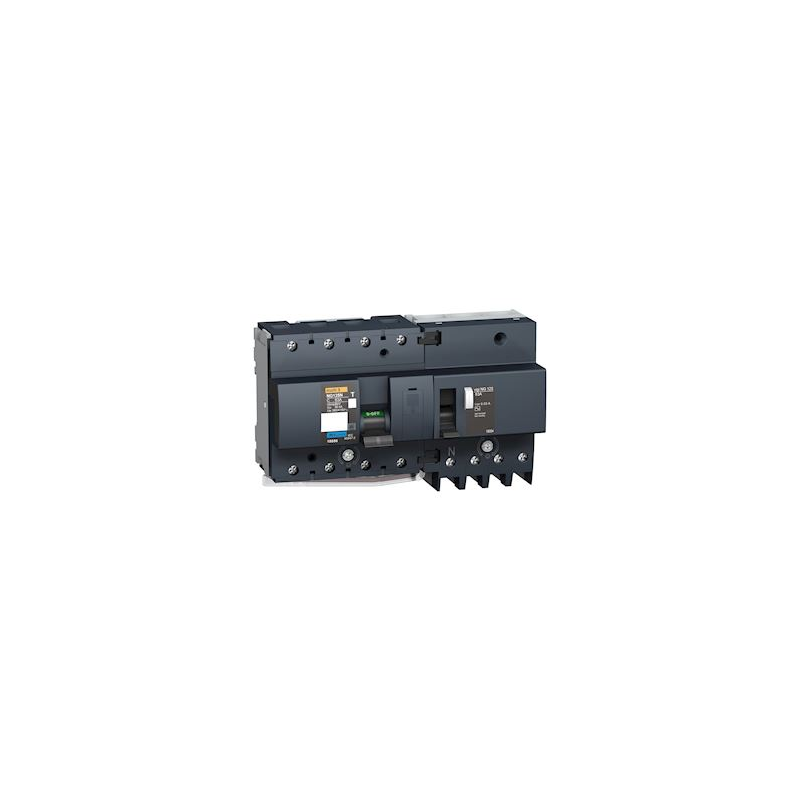

| Manufacturer | Schneider Electric |
| Reference | 19004 |
| EAN | 3303430190042 |
| Customs code | 85363030 |
| Product line | Ng125 |
| Nominal voltage | 230,0...415,0 V |
| Type of differential current | AC |
| With locking device | Yes |
| Frequency | 50/60Hz |
| Protection class (IP) | IP20 |
| Intensity | 63.0 A |
| Number of poles | 4.0 |
| Section of connection cable rigid | 1,5 .. 50,0 mm² |
| Ambient temperature in operation | 5,0 .. 60,0 °C |
| Rated impulse withstand voltage (Uimp) | 8.0 kV |
| Rated insulation voltage (Ui) | 690.0 V |
| Shock current resistance | 3.0 kA |
Reference: A9Q04225
Acti9 Vigi iC60 - differential block 130Vac (Ph/N) - 2P - 25A - 300mA - type AC
Reference: A9Y64640
Differential block 40A - Vigi iDT40 -departure - 30mA - type Asi - 1P+N
Reference: A9Q31440
Acti9 Vigi iC60 - differential block 230Vca (Ph/N) - 4P - 40A - 30mA - type A-SI
Reference: A9N18591
Acti9 Vigi C120 - differential block - 2P - 30mA - type A-SI - instant
Reference: A9Q11240
Differential block Vigi iC60 2P - 40A - 30mA - type AC - 230-240V 400-415V
Reference: A9V31463
Acti9 Vigi iC60 - differential block 230Vca (Ph/N) - 4P - 63A - 30mA - type A-SI
Reference: A9N18558
Acti9 Vigi C120 - differential block - 3P - 300mA - type A-SI - selective
Reference: A9Y12725
Acti9 iTG40 - differential block Vigi group head - 3P+N - 25A - 30mA - type AC
Reference: A9N18563
Acti9 Vigi C120 - differential block - 2P - 30mA - type AC - instant
Reference: A9Q31325
Acti9 Vigi iC60 - differential block 400Vca (Ph/Ph)- 3P - 25A - 30mA - type A-SI
Reference: A9Y63740
Differential block 40A - Vigi iDT40 -departure - 300mA - type AC - 3P+N
Reference: A9Y14725
Acti9 iTG40 - differential block Vigi group head - 3P+N - 25A - 30mA - type A-SI
