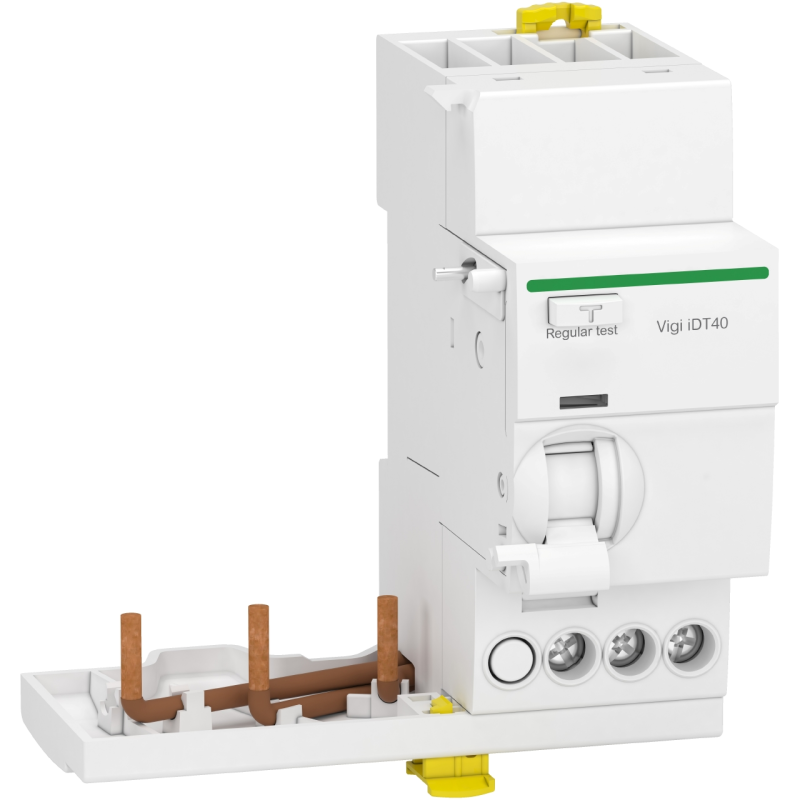

| Manufacturer | Schneider Electric |
| Reference | A9Y64340 |
| EAN | 3606481383488 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Nominal voltage | 400,0 V |
| Type of differential current | A |
| Frequency | 50Hz |
| Immune to nuisance triggers | Yes |
| Protection class (IP) | IP20 |
| Intensity | 40.0 A |
| Number of poles | 3.0 |
| Section of connection cable rigid | 1,0 .. 16,0 mm² |
| Ambient temperature in operation | -25,0 .. 60,0 °C |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 440.0 V |
| Shock current resistance | 3.0 kA |
Reference: A9N18561
Acti9 Vigi C120 - differential block - 4P - 1000mA - type A-SI - selective
Reference: A9Q01225
Acti9 Vigi iC60 - differential block 130Vca (Ph/N) - 2P - 25A - 30mA - type AC
Reference: A9Y13463
Acti9 iTG40 - differential block Vigi group head - 4P - 63A - 300mA - type AC
Reference: A9N18599
Acti9 Vigi C120 - differential block - 4P - 500mA - type A-SI - instant
Reference: A9Q31440
Acti9 Vigi iC60 - differential block 230Vca (Ph/N) - 4P - 40A - 30mA - type A-SI
Reference: A9Q31340
Acti9 Vigi iC60 - differential block 230Vca (Ph/N) - 3P - 40A - 30mA - type A-SI
Reference: A9Q31240
Acti9 Vigi iC60 - differential block 230Vca (Ph/N) - 2P - 40A - 30mA - type A-SI
Reference: A9Y14625
Acti9 iTG40 - differential block Vigi group head - 1P+N - 25A - 30mA - type A-SI
Reference: A9Q11240
Differential block Vigi iC60 2P - 40A - 30mA - type AC - 230-240V 400-415V
