How do you measure your electricity consumption?

Why measure electricity consumption?

Substantial savings

Accurately measuring your electricity consumption is the first step towards significant savings. In France, the average cost of electricity for households is around €0.20 per kilowatt-hour (kWh) under regulated tariffs. By identifying which appliances consume the most energy and when, you can reduce your bill by 10-30%, according to experts in the energy sector.

The measurement can also be used to detect consumption anomalies. A faulty appliance, an outdated installation or equipment left on standby can generate insidious overconsumption that goes unnoticed without an appropriate metering system.

Contributing to the energy transition

Beyond the financial aspect, measuring your consumption is part of a responsible ecological approach. Electricity generation, even in countries with a low-carbon energy mix, requires resources and has an environmental impact. By reducing your consumption, you are contributing to the collective effort to reduce greenhouse gas emissions and preserve natural resources.

Optimize your energy contract

Detailed knowledge of your consumption profile enables you to choose the tariff offer best suited to your needs. Electricity suppliers offer different formulas: base rate, peak/off-peak, tempo or dynamic rates. Precise measurement of your consumption habits helps you select the most advantageous option.

Electrical units and quantities to know

Before discussing measurement methods, it's essential to understand the main electrical quantities you'll encounter.

The kilowatt-hour (kWh): the unit of consumption

The kilowatt-hour represents the energy consumed by a 1000-watt appliance running for one hour. This is the unit used by electricity suppliers to bill your consumption. For example, a 2000 watt (2 kW) radiator switched on for 3 hours will consume 6 kWh.

The watt (W): the unit of power

Power, measured in watts, indicates the amount of energy a device consumes at a given moment. Household appliances generally display their power ratings on their nameplates. A refrigerator can have a power rating of 150 W, an electric oven 2500 W, and an LED bulb 10 W.

Ampere (A) and volt (V)

Electrical current, measured in amperes, represents the flow of electricity through a circuit. Voltage, measured in volts, is the electrical potential difference. In France and most other European countries, the standard domestic voltage is 230 volts single-phase. The relationship between these quantities is given by the formula: Power (W) = Voltage (V) × Current (A).

Methods for measuring electricity consumption

The electricity meter: global measurement

The electricity meter is the starting point for any measurement process. It records all the electricity consumed in your home or building.

Traditional disc meters

The old electromechanical meters, recognizable by their rotating discs, display total consumption since installation on mechanical dials. The speed of rotation of the disc is proportional to the power consumed at time T. To calculate your consumption over a given period, simply read the index (the figure displayed) at two different times and calculate the difference.

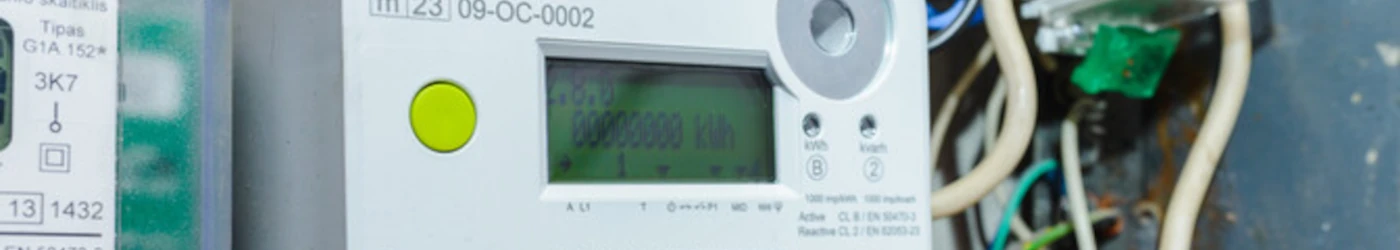

Electronic meters

Introduced in the 1990s and 2000s, these digital meters offer a more accurate LCD display and can store several types of information: total consumption, peak and off-peak consumption, maximum power reached. They are easier and more accurate to read than mechanical meters.

Linky smart meters

In France, Enedis (the state-owned company that manages the electricity distribution network for 95% of the country) has been rolling out Linky smart meters since 2015. These new-generation meters automatically transmit consumption data and offer several advantages:

• Automatic reading of consumption without manual intervention
• Remote consumption monitoring via the supplier's customer area
• Load curves show consumption in 30-minute increments
• Detection of anomalies and power overruns
• Remote contract activation and modification

To access your Linky data, you need to create an account on your electricity supplier's website or directly on the Enedis website. You can then download your consumption data in CSV format and analyze your energy habits in detail.

Wattmeters and test sockets

To identify the consumption of each individual appliance, the wattmeter (or energy meter) is the ideal tool.

Wattmeter operation

A wattmeter is connected between the wall socket and the device to be measured. It displays a range of information in real time:

• Instantaneous power (in watts)
• Energy consumed since start of measurement (in kWh)
• Estimated cost of consumption (based on the programmed price per kWh)
• Power factor (for inductive loads)
• Current and voltage

These devices, available from specialist electrical retailers, generally cost between €15 and €50, depending on their functionality. Some advanced models feature an internal memory to record data over several days or weeks.

Methodology of use

To obtain representative measurements, we recommend :

1. Measure each appliance for at least 24 hours to capture complete operating cycles (especially for refrigerators, freezers and water heaters).

2. Note the different operating modes (standby, normal operation, intensive mode)

3. Test programmable devices at different times of the day

4. Create a summary table of all measures

This systematic approach will enable you to draw up a precise energy balance for your home, and identify the priority consumption items to be optimized.

Current clamps

For more complex electrical installations or measurements at the switchboard level, the current clamp is particularly useful.

Operating principle

This professional tool measures the current flowing through a conductor without the need to cut or strip the cable. The clamp opens and closes around the wire, and measures the magnetic field generated by the current flow. Coupled with voltage measurement, it can be used to calculate power consumption.

Modern current clamps also incorporate multimeter functions (voltage, resistance, continuity measurement) and can record data for later analysis.

Safe use

Using a current clamp on an electrical panel requires a few precautions:

• Never work on a live electrical panel without proper training.
• Respect safety distances
• Use appropriate personal protective equipment
• If in doubt, contact a qualified electrician.

This method is particularly suitable for measuring the consumption of specific circuits: electric heating, water heaters, production equipment (heat pumps, air conditioning), or circuits dedicated to certain rooms.

Connected energy monitoring systems

Technological evolution has given rise to sophisticated home monitoring solutions that offer real-time monitoring and detailed analysis.

Home consumption monitors

These devices generally consist of :

• Current sensors installed in the electrical panel (CT clamps - Current Transformer)
• A central unit that collects and analyzes data
• A consultation interface (remote screen, smartphone application, web interface)

Energy monitors allow you to :

• View overall consumption and consumption by circuit in real time
• Receive alerts in the event of overconsumption
• Compare consumption from day to day, week to week
• Identify devices in operation by their electrical signature
• Estimate daily, monthly and annual electricity costs

Recognized brands offer these systems from 100 euros for entry-level models, up to several hundred euros for professional solutions.

Integrated home automation solutions

Modern home automation systems often include energy measurement functions. Connected sockets, smart switches and DIN modules (standard format for electrical panels) enable you not only to control your appliances remotely, but also to measure their consumption.

These devices communicate via various protocols (Wi-Fi, Zigbee, Z-Wave, KNX) with a home automation control unit or directly with a smartphone application. The advantage of this approach is the ability to automate actions based on detected consumption.

Network quality analyzers

For industrial and tertiary installations, or for private customers equipped with production systems (photovoltaic panels, cogeneration), network quality analyzers offer highly accurate measurements.

These professional devices record :

• Three-phase voltages and currents
• Harmonics and disturbances
• Power factor and reactive energy
• Voltage dips and cuts
• Phase imbalances

This data is used to optimize electrical installations, detect malfunctions and comply with electrical network quality standards.

Interpret and analyze consumption data

Data collection is only the first step. Analysis and interpretation are essential to transform this information into concrete energy-saving actions.

Establish your consumption profile

Start by identifying the different components of your consumption:

Basic consumption corresponds to the electricity consumed permanently by appliances on standby, equipment that operates 24 hours a day (refrigerator, freezer, internet box, alarm) and minimal lighting. In France, this basic consumption represents an average of 15-20% of the total bill for a home.

Peaks in consumption correspond to times when several energy-hungry appliances are running simultaneously (cooking, heating, washing machines, tumble dryers). These peaks can reach several kilowatts, and may cause your installation to trip if the subscribed power is insufficient.

Seasonal consumption varies greatly according to heating mode. A home heated with electricity can see its consumption triple in winter compared to summer.

Identify priority consumption items

For a typical French home, the average breakdown of electricity consumption is as follows:

• Electric heating: 30% to 60% (depending on insulation and surface area)
• Domestic hot water: 10% to 15%.
• Cooking: 5 to 10%.
• Cold (refrigerator, freezer): 10 to 15%.
• Lighting: 5 to 10%.
• Household appliances and multimedia: 10 to 20%.
• Standby and hidden consumption: 5 to 10%.

By comparing your measurements with these averages, you can quickly identify anomalies and priority areas for improvement.

Calculate the actual cost of each device

To evaluate the financial impact of each piece of equipment, use the formula :

Annual cost = Power (kW) × Runtime (hours/year) × Price per kWh (€).

For example, an old energy class C refrigerator consuming 400 kWh per year will cost :

400 kWh × €0.20 = €80 per year

In comparison, a recent class A++ model consuming 150 kWh per year will cost :

150 kWh × €0.20 = €30 per year

The savings of €50 per year quickly pay for the replacement of the unit.

Using load curves

Communicating meters and monitoring systems provide load curves that graphically represent your consumption over time. Analysis of these curves reveals :

• Peak consumption hours (usually morning and evening for a home)
• Abnormal night-time consumption (leaks, faulty appliances)
• The effectiveness of the savings actions implemented
• Opportunities to shift consumption to off-peak hours

A flat, high load curve, even at night, often indicates a problem (incorrectly programmed water heater, overheating, faulty appliance).

Practical tips for optimizing consumption

Prioritize profitable investments

Once you have established your energy balance, prioritize your actions according to their profitability:

Free or low-cost actions:

• Completely switch off appliances on standby (power strips with switches)
• Optimize heating temperature (19°C in living areas, 16°C in bedrooms)
• Defrost refrigerator and freezer regularly
• Using eco programs on household appliances
• Focus on natural lighting

Rapidly depreciated investments:.

• Replacing bulbs with LEDs
• Installation of programmers on heating and water heaters
• Power strips with switches to eliminate standby power
• Energy-saving showerheads

Medium-term investments:.

• Replacement of obsolete household appliances with A+++ class models
• Installation of an efficient heating control system
• Improved thermal insulation

Adopting the right daily gestures

In addition to material investments, certain habits can lead to substantial savings:

• Only run washing machines and dishwashers at full load
• Use off-peak times for programmable equipment
• Cover pans during cooking
• Defrost food in the refrigerator rather than in the microwave
• Air dry rather than tumble dry
• Set water heater temperature between 55 and 60°C

Regularly monitor your consumption

The effectiveness of your approach depends on regular follow-up. Establish measurement rituals:

• Monthly meter reading to detect deviations
• Quarterly checks on consumption of main appliances
• Half-yearly analysis of overall trends
• Annual review to assess the effectiveness of actions implemented

Consumption tracking applications facilitate this monitoring by automatically alerting you to any anomalies and generating detailed reports.

Raising awareness among all occupants

In a household, the support of all members is essential for lasting results. Share your consumption data, explain the impact of each action and promote the savings made. Some families even turn energy management into a game, with monthly challenges and rewards for collective efforts.

Emerging measurement technologies

Artificial intelligence for energy analysis

The latest systems incorporate artificial intelligence algorithms capable of :

• Automatic recognition of each device by its electrical signature (a technique known as NILM - Non-Intrusive Load Monitoring)
• Predict future consumption based on habits and weather conditions
• Suggest customized optimizations
• Detecting abnormal behavior

These technologies, still reserved for top-of-the-range systems, are set to become more widespread over the next few years.

Blockchain for energy traceability

Some experimental projects are using blockchain to certify the origin of the electricity consumed (renewable, local energy) and create self-consumption communities where members exchange their production.

New-generation smart meters

Future meters will feature advanced functions:

• Bidirectional measurement for local production (solar panels)
• Electric vehicle charging management
• Participation in network flexibility mechanisms (load shedding)
• Direct interface with home automation systems

The regulatory framework and available assistance

Metering obligations

In France and the European Union, the Energy Efficiency Directive requires the deployment of smart meters that give consumers free access to their consumption data. Member States must equip at least 80% of consumers by 2027.

Energy performance diagnostics

The DPE (Diagnostic de Performance Énergétique) is mandatory in France for all property sales and rentals. This diagnosis assesses a home's energy consumption and greenhouse gas emissions. Although this is a theoretical estimate, it can be compared with your actual measurements to identify gaps and areas for improvement.

Financial assistance for energy efficiency work

There are a number of ways of financing work to reduce energy consumption:

• MaPrimeRénov' (French government program to support energy renovation)
• CEE - Certificats d'Économies d'Énergie (obligation imposed on energy suppliers to finance work carried out on private homes)
• Zero interest eco-loan for energy renovations
• VAT reduced to 5.5% for certain energy improvements

These grants, conditional on the use of RGE (Reconnu Garant de l'Environnement) certified professionals, can cover a significant part of the investment cost.

Conclusion

Measuring electricity consumption is no longer a luxury, but a necessity in today's energy context. From simple wattmeters to sophisticated monitoring systems, via the use of data from communicating meters, there are numerous solutions to suit all budgets and technical levels.

The key is to observe, measure, analyze and act. Even without major investment, simply being aware of your consumption and adopting simple actions can save you 10-15%. Coupled with targeted investments in efficient equipment, this approach can reduce your electricity bill by 30-50% while improving your comfort.

Over and above the financial savings, this energy management contributes to the ecological transition by reducing your carbon footprint and helping to balance the electricity grid. In a world where energy resources are precious, every kilowatt-hour saved counts.

Start today by reading your meter, measuring a few key appliances with a wattmeter, and you'll be surprised at the discoveries you'll make. Controlling your electricity consumption is within reach, and the tools to achieve it have never been more accessible.
