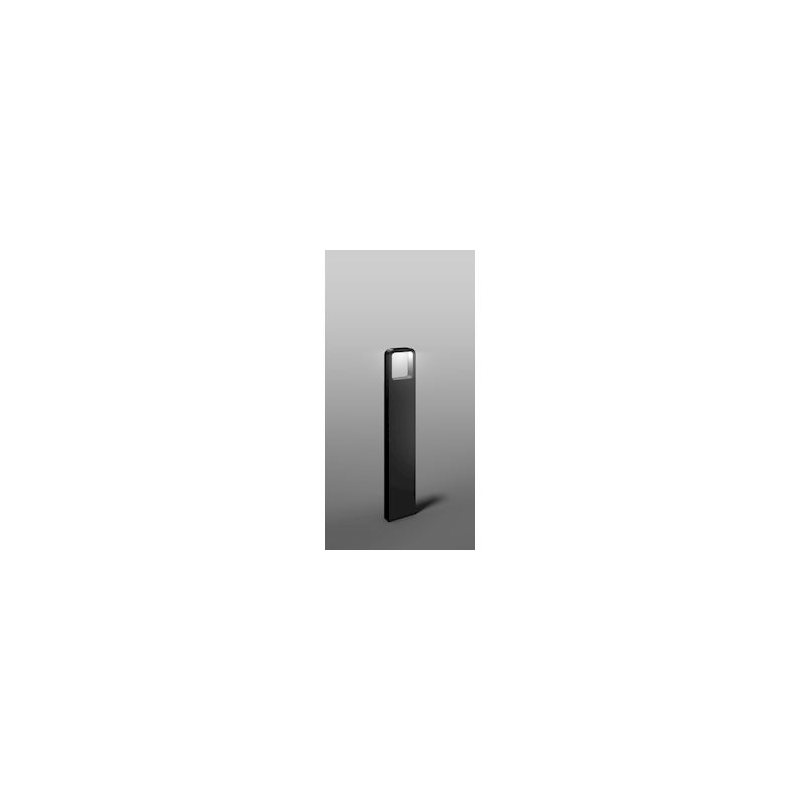

HB 203 9W 290lm 830 anthracite On/Off

611976.0031
4051859151661
Product line: Home 203, Protection class (IP): IP54, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€227.33
€181.86 Save 20%
Tax included
Quantity
Out-of-Stock

100% secure payments
Close
Description

Product characteristics

HB 203 9W 290lm 830 anthracite On/Off
Color temperature
3000K
Beam angle
diffuse beam
Protection class (IP)
IP54
Class electric
Class I
Color rendering index (CRI)
80 .. 89

main features

  • Product line: Home 203
  • Protection class (IP): IP54
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: RZB 611976.0031 / EAN: 4051859151661

High Quality Product

Thanks to its aluminium structure this Home 203 range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference611976.0031
EAN4051859151661
Customs code94054239
Product lineHome 203
Design and finish
Case colorAnthracite
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage200.000 .. 240.000 V
Type of voltageAC
Dimensions and weight
Height/depth650.000 mm
Width120.000 mm
Length40.000 mm
Technical specifications
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
With base plateYes
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classF
Rated current38.000-45.000 mA
Nominal current of the LED at constant current38.000-45.000 mA
Rated life L70/B50 at 25°C25000.000 h
Luminaire efficiency33 lm/W
Light emissionDirect
Effective luminous flux290 lm
Protection class (IP)IP54
Protection class against impacts (IK)IK06
Number of lamps/modules1.000
Number of poles3
Max. number of luminaires per circuit breaker B16180.000
Accepted lamp power9 W
System power9.000 W
Light distributionSymmetrical
Wire surface1.500 mm²
Light source includedYes
Light source includedYes
Color temperature3000 K
TypeLED not interchangeable
Type of wiringTermination
Type of connectionScrew terminal
Type of luminaireLuminous bollard
Type of connectionScrew terminal
