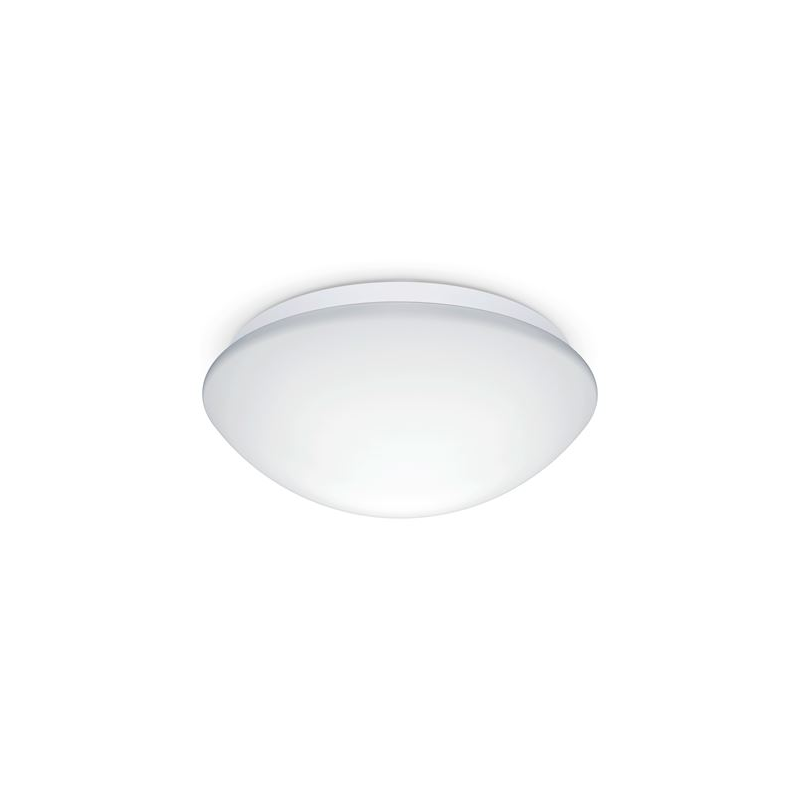

Porthole RS PRO LED P3 with sensor 4000K EU

056117
4007841056117
Color: White, Product line: Rs pro, Protection class (IP): IP54, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€269.30
€218.14 Save 19%
Tax included Delivery within 15 working days in Europe - Price for 1u.
Quantity
On order / 15 days

100% secure payments
Close
Description

Porthole RS PRO LED P3 with sensor 4000K EU - 056117

Porthole RS PRO LED P3 with sensor 4000K EU
Color temperature
4000K
Beam angle
very extensive beam +80°
Protection class (IP)
IP54
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features - Steinel 056117

  • Color: White
  • Product line: Rs pro
  • Protection class (IP): IP54
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Steinel 056117 / EAN: 4007841056117
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSteinel
Reference056117
EAN4007841056117
Customs code94051140
Product lineRs pro
Design and finish
ColorWhite
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Diameter400 mm
Height142 mm
Height/depth142 mm
Length142 mm
Technical specifications
Suitable for pendant lightsNo
DeviceLED driver constant current
Equipment suppliedYes
With sensor twilightYes
With sensor of lightYes
With sensor of movementYes
Energy efficiency class of the supplied exchangeable lampA++
Energy efficiency class of the supplied lampA++, A+, A (LED)
Max. energy efficiency class of the exchangeable lampA++
Minimum energy efficiency class of the exchangeable lampA
Start of phase breakNo
End of phase breakNo
Nominal current of the LED at constant current530 mA
Motion sensorYes
Luminaire efficiency118.913 lm/W
Light emissionDirect
Power factor (cos phi)0.9
Effective luminous flux2188 lm
Protection class (IP)IP54
Protection class against impacts (IK)IK03
Wall mountingYes
Number of poles2
Fire protection "D"No
Accepted lamp power18.4 W
System power18.4 W
Light distributionSymmetrical
Wire surface2.5 mm²
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-10...40 °C
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Interface
Programmable variationYes
