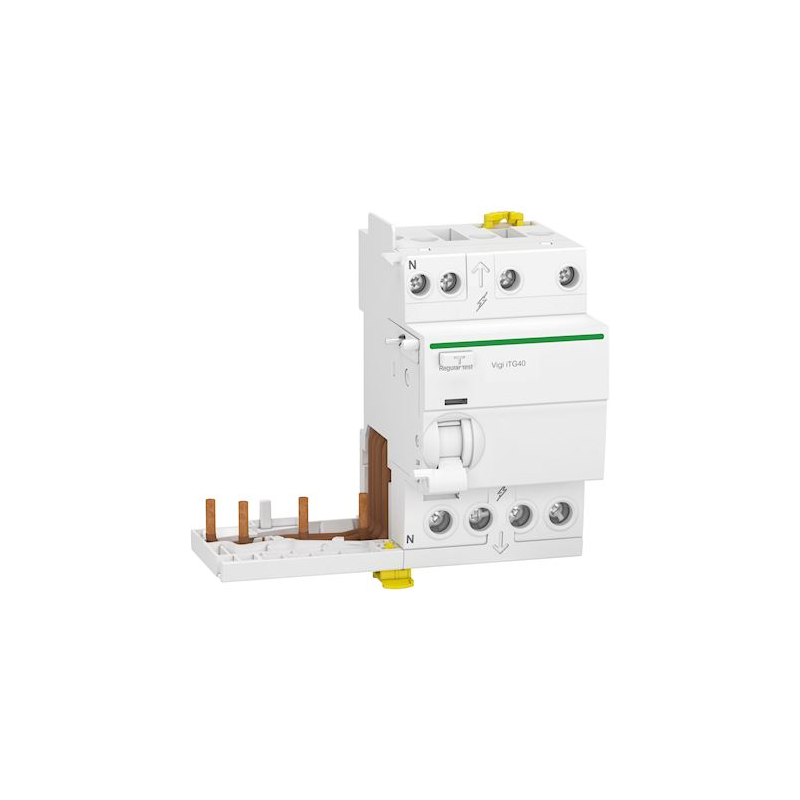

| Manufacturer | Schneider Electric |
| Reference | A9Y15725 |
| EAN | 3606481383570 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Nominal voltage | 400,0 V |
| Type of differential current | A |
| Degree of pollution | 3 |
| Frequency | 50Hz |
| Immune to nuisance triggers | Yes |
| Protection class (IP) | IP20 |
| Intensity | 25 A |
| Number of poles | 4 |
| Section of connection cable rigid | 1,0 .. 16,0 mm² |
| Ambient temperature in operation | -25,0 60,0 °C |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
| Shock current resistance | 3 kA |
