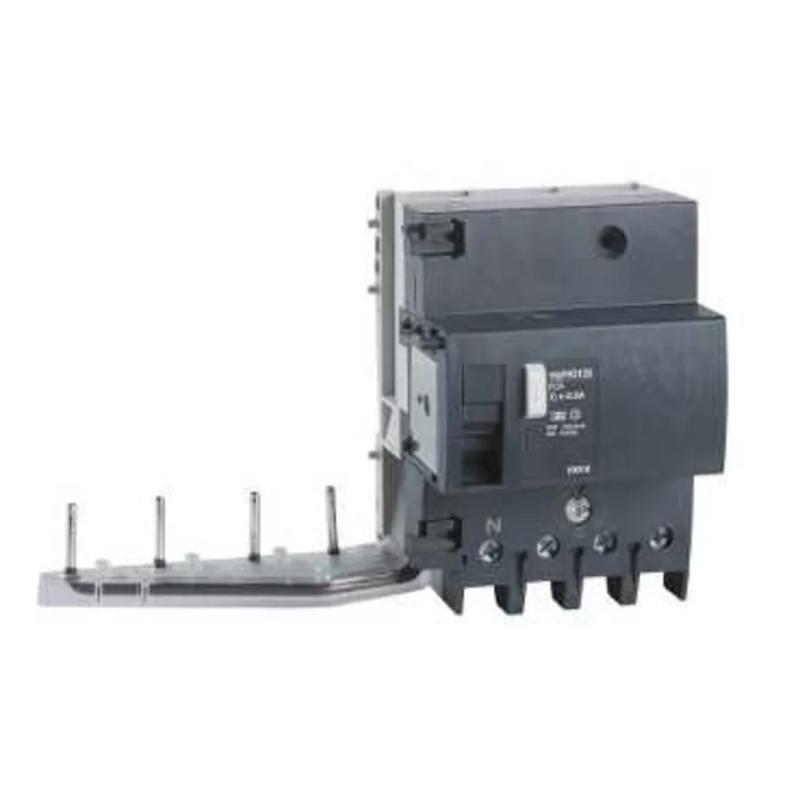

| Manufacturer | Schneider Electric |
| Reference | 19034 |
| EAN | 3303430190349 |
| Customs code | 85363030 |
| Product line | Ng125 |
| Nominal voltage | 230,0...415,0 V |
| Type of differential current | A |
| With locking device | Yes |
| Frequency | 50/60Hz |
| Protection class (IP) | IP20 |
| Intensity | 63.0 A |
| Number of poles | 4.0 |
| Section of connection cable rigid | 1,5 .. 50,0 mm² |
| Ambient temperature in operation | -25,0 .. 60,0 °C |
| Rated impulse withstand voltage (Uimp) | 8.0 kV |
| Rated insulation voltage (Ui) | 690.0 V |
| Shock current resistance | 5.0 kA |
