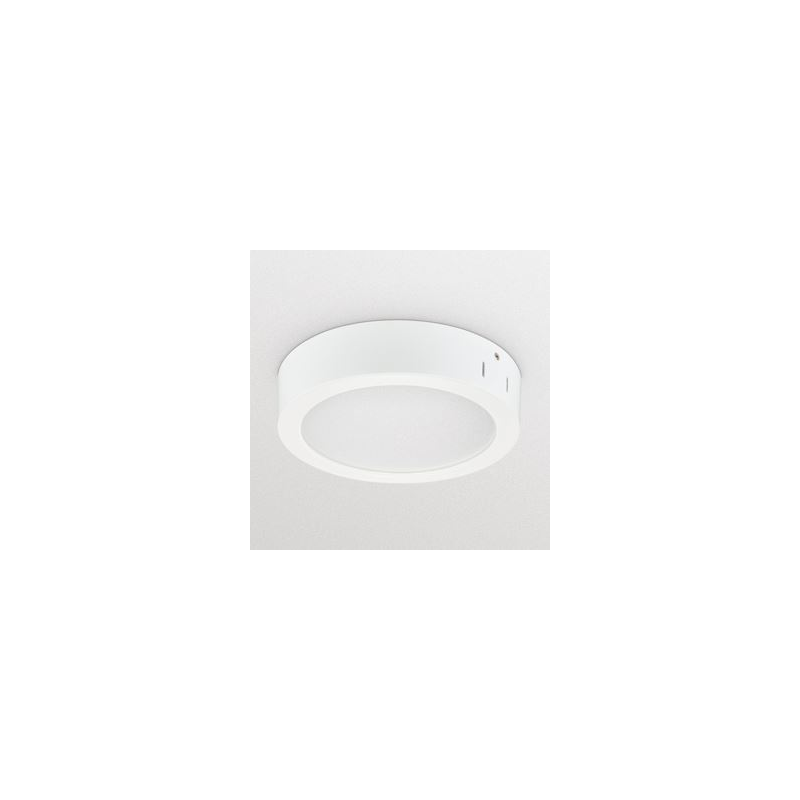

CoreLine ceiling light LED D222 DN145C G3 840 On/Off UGR28 21W 2100lm 50000h L70

339542
8710163339542
Product line: Coreline, Protection class (IP): IP44, Color rendering index (CRI): 80 .. 89, Color temperature: 3867...4103 K
€120.34
€96.27 Save 20%
Tax included Stock: 6 (+ on order) - Delivery within 9 working days in Europe - Price for 1u.
Quantity
In stock (6 u)

100% secure payments
Description

Product characteristics

CoreLine ceiling light LED D222 DN145C G3 840 On/Off UGR28 21W 2100lm 50000h L70
Color temperature
4000K
Beam angle
diffuse beam
Luminous flux (Lumen)
2100lm
Protection class (IP)
IP44
Class electric
class II
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
28.0

main features

  • Color: Grey
  • Product line: Coreline
  • Protection class (IP): IP44
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Philips 339542 / EAN: 8710163339542

High Quality Product

Thanks to its aluminium structure this Coreline range luminaire offers you rock-solid strength and guaranteed longevity.
Philips
Philips

Find all the products of the brand Philips at the best price on the store domeashop.com.

See all products Philips
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerPhilips
Reference339542
EAN8710163339542
Warranty2 years
Customs code94051190
Product lineCoreline
Design and finish
ColorGrey
Case colorWhite
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220.0...240.0 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for surface mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingYes
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Diameter219.0 mm
Height50 mm
Height/depth50.0 mm
Installation height/depth28.0 mm
Width222 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitYes
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classE
Start of phase breakNo
End of phase breakNo
Rated current43.7...48.3 mA
Nominal current of the LED at constant current43.7...48.3 mA
DimensionsØ222 x 50 mm ( Ø x H )
Rated life L70/B10 at 25°C55000 h
Rated life L70/B50 at 25°C50000.0 h
Rated life L80/B10 at 25°C34000 h
Rated life L80/B50 at 25°C35000 h
Rated life L90/B10 at 25°C16000 h
Rated life L90/B50 at 25°C16000 h
Luminaire efficiency100 lm/W
Light distribution elementDiffuser
Light emissionDirect
Glare assessment (UGR)28.0
Power factor (cos phi)0.9
Luminous flux (Lumen)2100.0 lm
Effective luminous flux2100 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP44
Protection class against impacts (IK)IK02
Intensity1108.094 cd
Wall mountingNo
Number of lamps/modules1.0
Number of poles2
Max. number of luminaires per circuit breaker B1616.0
Max. number of luminaires per circuit breaker C1627.0
Fire protection "D"No
Accepted lamp power18.9 .. 23.1 W
System power21.0 W
RegulabilityNot adjustable
Light distributionSymmetrical
Wire surface0.75 mm²
Connectable conductor section0.5...1.5 mm²
Light source includedYes
Light source includedYes
Brushed surfaceNo
Harmonic distortion rate20
Nominal room temperature according to IEC 62722-2-125.0 °C
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Color uniformity (mcAdam ellipse)SDCM3
GlassOpal
Interface
Control via bluetoothNo
