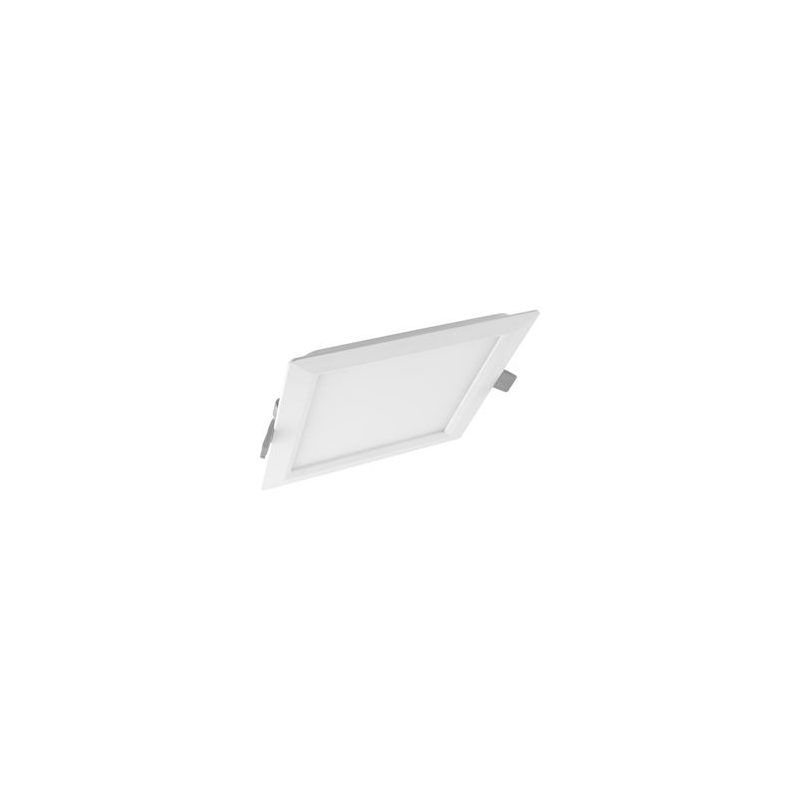

DL SLIM square 155 12W 4000K white IP20 1020lm downlight

Reference 079298

EAN 4058075079298

Brand Ledvance

Product line: Value, Protection class (IP): IP20, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K

€93.53

€55.18 Save 41%

Tax included Stock: 30 (+ on order) - Delivery within 11 working days in Europe - Price for 1u.

Quantity

In stock (30 u)

100% secure payments

Description

Description

DL SLIM square 155 12W 4000K white IP20 1020lm downlight - 079298

DL SLIM square 155 12W 4000K white IP20 1020lm downlight

4000K

very extensive beam +80°

1020lm

1020-1020lm

IP20

class II

80 .. 89

main features - Ledvance 079298

Product line: Value
Protection class (IP): IP20
Color rendering index (CRI): 80 .. 89
Color temperature: 4000 K
reference: Ledvance 079298 / EAN: 4058075079298

High Quality Product

By offering an extended warranty to 3 years, Ledvance ensures a high level of quality of this product that will give you satisfaction for many years.

Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Ledvance
Reference	079298
EAN	4058075079298
Warranty	3 years
Customs code	94051140
Product line	Value

Design and finish

Case color	White
Material of the glass	Opaline plastic
Material	Plastic

Light information

Beam angle	Faisceau très extensif +80°
Color of light	White
Color rendering index (CRI)	80 .. 89

Electrical information

Class electric	II
Nominal voltage	220...240 V
Nominal voltage	220 .. 240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Suitable for surface mounting	Yes
Suitable for flush mounting	Yes
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	No
Suitable for rail mounting	No
Suitable for crossbar mounting	No

Dimensions and weight

Height/depth	30.00 mm
Height/depth	30 mm
Installation height/depth	50.0 mm
Installation height/depth	50 mm
Width	169.00 mm
Width	169 mm
Installation width	155.0 mm
Installation width	155 mm
Length	169.00 mm
Length	169 mm
Embedding length	155.0 mm
Embedding length	155 mm

Technical specifications

Suitable for pendant lights	No
Integrated emergency power supply	No
Device	LED driver constant current
Exchangeable control unit	Yes
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
IFTTT compatible	Yes
Start of phase break	No
End of phase break	No
Rated current	71.7 mA
Rated current	7-71 mA
Nominal current of the LED at constant current	71.7 mA
Rated life L70/B10 at 25°C	30000 h
Rated life L70/B50 at 25°C	30000 h
Rated life L80/B10 at 25°C	20000 h
Rated life L80/B50 at 25°C	20000 h
Rated life L90/B10 at 25°C	12000 h
Rated life L90/B50 at 25°C	12000 h
Luminous efficacy of the lamp	85 lm/W
Luminaire efficiency	85 lm/W
Light distribution element	Diffuser
Light emission	Direct
Power factor (cos phi)	0.50
Power factor (cos phi)	0.5
Luminous flux (Lumen)	1020 lm
Luminous flux (Lumen)	1020-1020 lm
Effective luminous flux	1020 lm
Photobiological risk group according to EN 62471	GR0
Protection class (IP)	IP20
Protection class against impacts (IK)	IK03
Wall mounting	Yes
Number of poles	2
Max. number of luminaires per circuit breaker B16	48
Max. number of luminaires per circuit breaker C16	61
Fire protection "D"	No
Accepted lamp power	12 W
System power	12.00 W
System power	12 W
Regulability	Not adjustable
Light distribution	Symmetrical
Light source included	Yes
Light source included	Yes
Brushed surface	No
Harmonic distortion rate	20
Nominal room temperature according to IEC 62722-2-1	-20 .. +50 °C
Nominal room temperature according to IEC 62722-2-1	-20-+50 °C
Color temperature	4000 K
Glow-wire test according to IEC 60695-2-11	650 °C - 30 s
Type	LED not interchangeable
Type of wiring	Termination
Type of connection	Automatic bollard
Type of connection	File terminal
Color uniformity (mcAdam ellipse)	SDCM6
