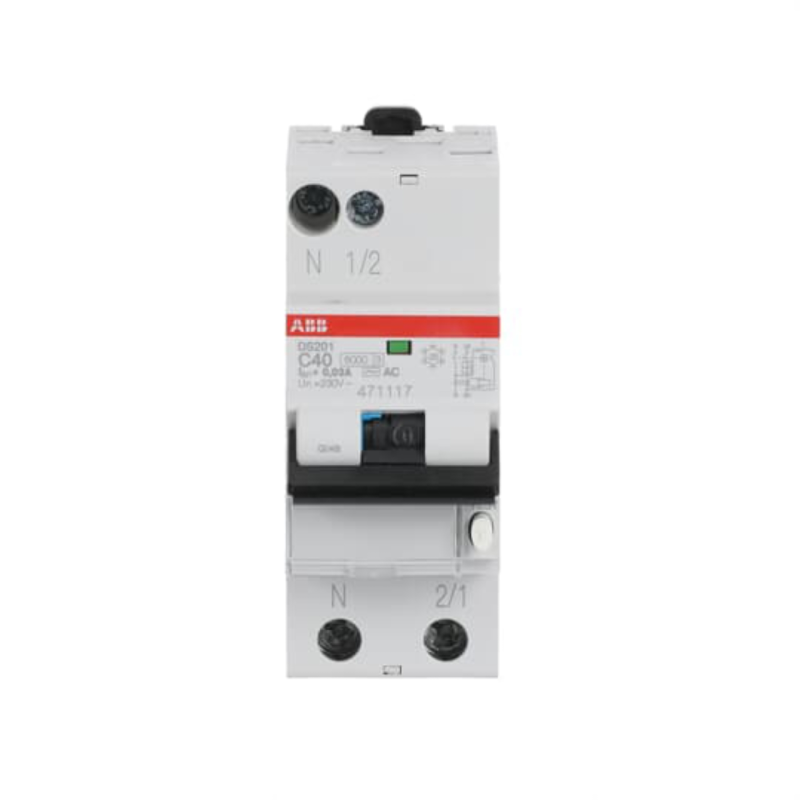

| Manufacturer | ABB |
| Reference | 2CSR255041R1404 |
| EAN | 8012542177302 |
| Customs code | 85363030 |
| Type of differential current | A |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 2 |
| Embedding depth | 69 mm |
| With locking device | Yes |
| Calibre | 40 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP2X |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 25 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 °C |
| Tension | 240 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 0.25 kA |
Reference: 2CSR256040R1064
Circuit breaker DIFF. Compact 3P+N (right) 6A 10kA CBE C 30mA type AC
Reference: 2CSR256040R2104
Circuit breaker DIFF. Compact 3P+N (right) 10A 10kA CBE C 100mA type AC
Reference: 2CSR256040R1324
Circuit breaker DIFF. Compact 3P+N (right) 32A Icu-10kA CBE C 30mA type AC
Reference: 2CSR273101R1324
Differential circuit breaker - block. DIFF. (DDA203)+circuit breaker (S203) 10kA-A - C-32A 30mA
Reference: 2CSR255141R3321
DS201 differential circuit breaker - 1P+N - 32A - CBE D - 6000A/10kA-300mA-type A
Reference: 2CSR245041R1254
DS201L differential circuit breaker - 1P+N - 25A - CBE C - 4500A/6kA-30mA-type AC
Reference: 2CSR256040R3164
Circuit breaker DIFF. Compact 3P+N (right) 16A 10kA CBE C 300mA type AC
Reference: 2CSR255480R1404
DS201 differential circuit breaker - 1P+N (to right)- 40A- CBE C- 6kA - 30mA -APR
Reference: 2CSR772199R1254
Differential circuit breaker (DS20CR M) 2P 10kA-25A-CBE C-30mA type A - 110V
Reference: 2CSR752140R3165
Differential circuit breaker (DS202CR) 2P (6/10kA)-16A-CBE B-300mA type A
Reference: 2CSR256040R3204
Circuit breaker DIFF. Compact 3P+N (right) 20A 10kA CBE C 300mA type AC
Reference: 2CSR274101R1635
Differential circuit breaker - block. DIFF. (DDA204)+circuit breaker (S204) 10kA-A - B-63A 30mA
Reference: 2CSR255141R1251
DS201 differential circuit breaker - 1P+N - 25A - CBE D - 6000A/10kA-30mA-type A
Reference: 2CSR255041R1254
DS201 differential circuit breaker - 1P+N - 25A - CBE C - 6000A/10kA-30mA-type AC
