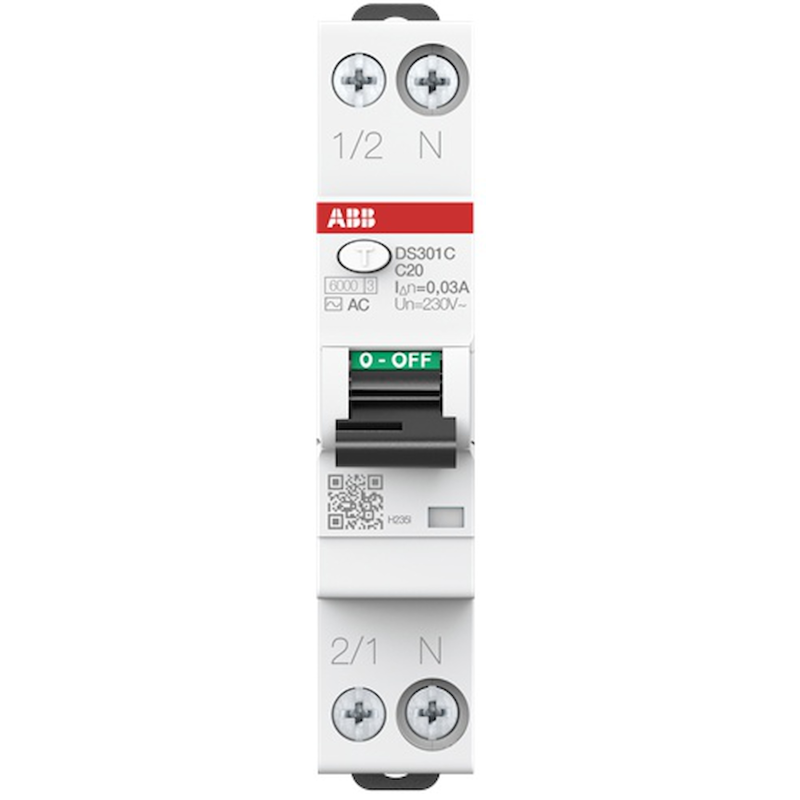

| Manufacturer | ABB |
| Reference | 2CSR255063R1204 |
| EAN | 8012542362456 |
| Customs code | 85363010 |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 1 |
| Embedding depth | 17.6 mm |
| Calibre | 20 A |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Protection class (IP) | IP20 |
| Number of poles | 1 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 1.5 mm² |
| Tension | 240 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
