Find all the products of the brand ABB at the best price on the store domeashop.com.
See all products ABB
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

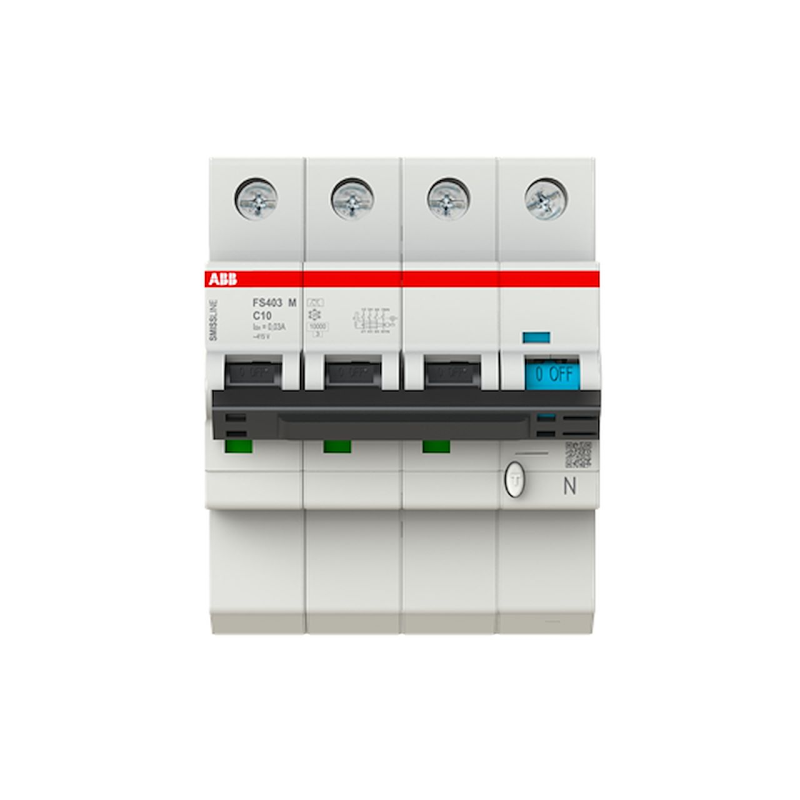

| Manufacturer | ABB |
| Reference | 2CCG001726R0001 |
| EAN | 7612271521950 |
| Customs code | 85362010 |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 78 mm |
| Calibre | 10 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| Number of poles protected | 3 |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 .. 60 °C |
| Tension | 415 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 3 kA |
Reference: 2CSR275080R1164
DS201M differential circuit breaker - 1P+N (to right) - 16A - CBE C-10kA- 30mA - AC
Reference: 2CCG001319R0001
Differential circuit breaker DS800P 4P - 125A - CBE C - 300mA - type A
Reference: 2CSR246040R1254
Circuit breaker DIFF. Compact 3P+N (right) 25A 6kA CBE C 30mA type AC
Reference: 2CSR246040R3164
Circuit breaker DIFF. Compact 3P+N (right) 16A 6kA CBE C 300mA type AC
Reference: 2CSR772440R1164
Differential circuit breaker (DS20CR M) 2P 10kA-16A-CBE C-30mA type APR
Reference: 2CSR752140R1164
Differential circuit breaker (DS202CR) 2P (6/10kA)-16A-CBE C-30mA type A
Reference: 2CSR274001R1404
Differential circuit breaker - block. DIFF. (DDA204)+circuit breaker (S204) 10kA- AC-C-40A 30mA
Reference: 2CSR255441R3164
DS201 differential circuit breaker - 1P+N - 16A - CBE C - 6000A/10kA-300mA-type APR
Reference: 2CSR246440R1164
Circuit breaker DIFF. Compact 3P+N (right) 16A 6kA CBE C 30mA type APR immune
Reference: 2CCG001347R0001
Differential circuit breaker DS800P 4P 125A - CBE C - 30mA - type A-APR immune
Reference: 2CSR255141R3161
DS201 differential circuit breaker - 1P+N - 16A - CBE D - 6000A/10kA-300mA-type A
Reference: 2CSR256040R1064
Circuit breaker DIFF. Compact 3P+N (right) 6A 10kA CBE C 30mA type AC
Reference: 2CCG001772R0001
Circuit breaker DIFF. SMISSLINE plug-in 1P+N (to right)-32A-CBE C-10kA-30mA-type F
