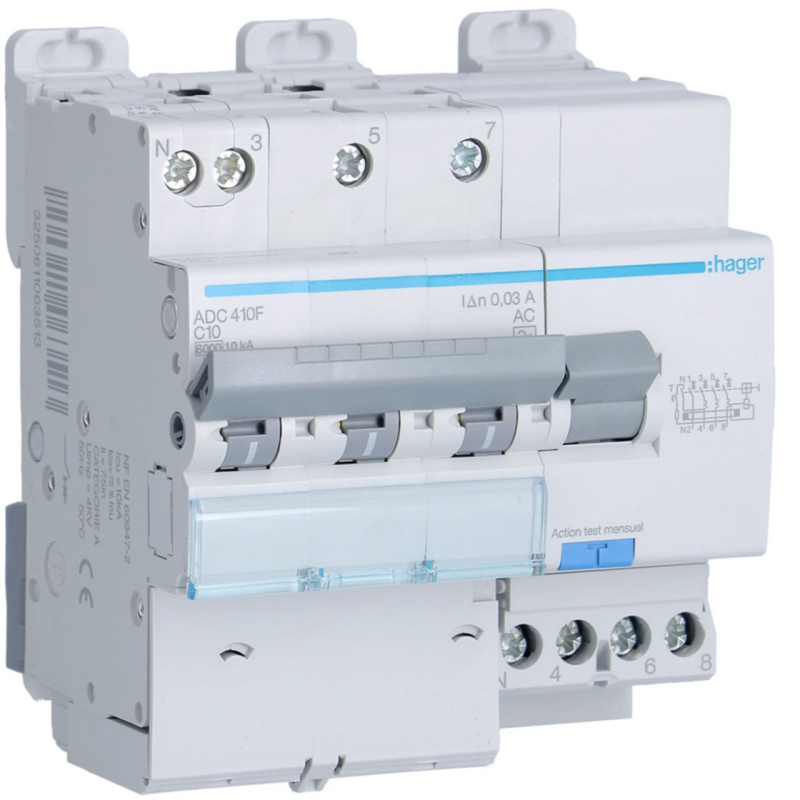

| Manufacturer | Hager |
| Reference | ADC410F |
| EAN | 3250611063513 |
| Customs code | 85362010 |
| Type of differential current | AC |
| Type of voltage | AC |
| Suitable for flush mounting | Yes |
| Width in number of modules | 5 |
| Embedding depth | 70 mm |
| With locking device | Yes |
| Calibre | 10 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Recessed mounting | Yes |
| Number of poles | 4 |
| Number of poles protected | 3 |
| Neutral pole simultaneously disconnected | Yes |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | 40 .. -5 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 3 kA |
Reference: ADC810F
Differential circuit breaker 10A 1P+N 6-10kA curve C 30mA type AC 2 modules
