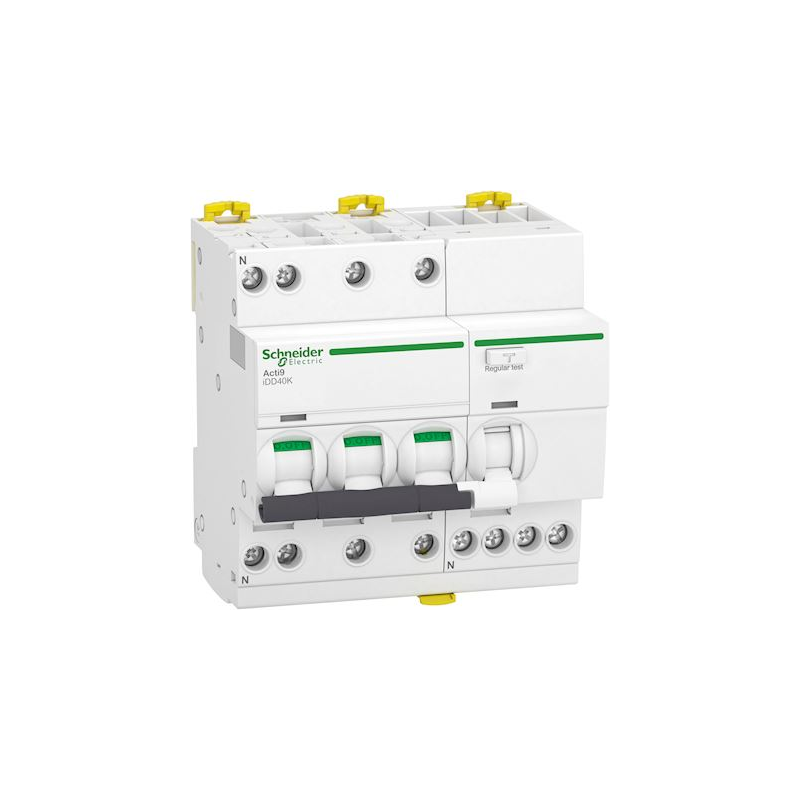

| Manufacturer | Schneider Electric |
| Reference | A9DK1725 |
| EAN | 3606481382610 |
| Warranty | 1.5 year |
| Customs code | 85362010 |
| Product line | Acti9 idt40k |
| Type of differential current | AC |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 5.0 |
| Embedding depth | 44.0 mm |
| With locking device | Yes |
| Calibre | 25.0 A |
| Curve | C |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4.0 |
| Neutral pole simultaneously disconnected | Yes |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -5,0 .. 60,0 °C |
| Tension | 400.0 V |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 440.0 V |
| Shock current resistance | 0.25 kA |
