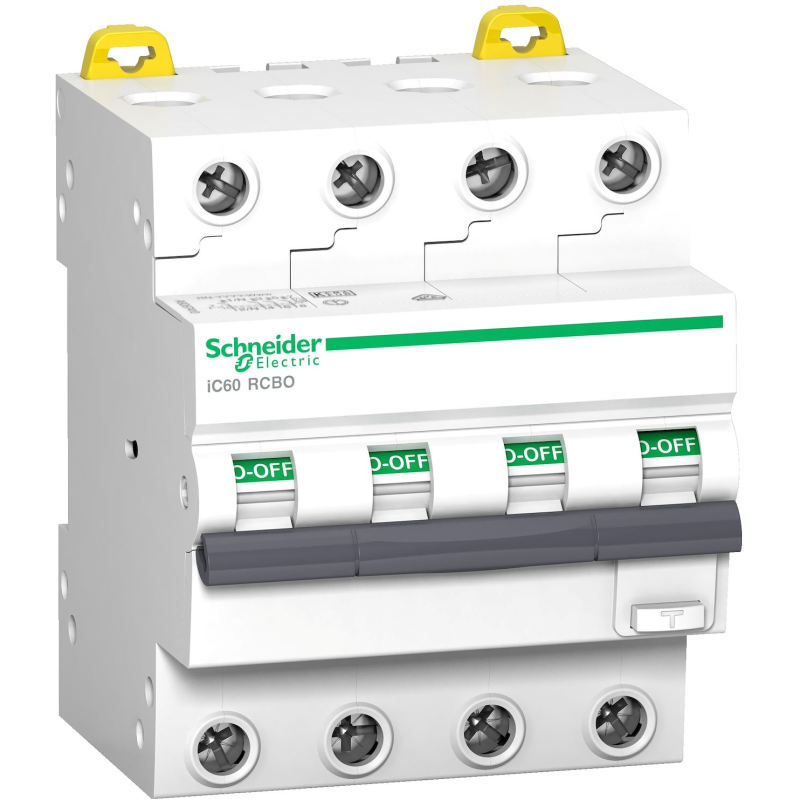

| Manufacturer | Schneider Electric |
| Reference | A9D57410 |
| EAN | 3606481157706 |
| Customs code | 85362010 |
| Product line | Acti9 ic60 |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 45 mm |
| Calibre | 10 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 1 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| Number of poles protected | 4 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 35,0 .. 1,0 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25,0 40,0 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 0.25 kA |
