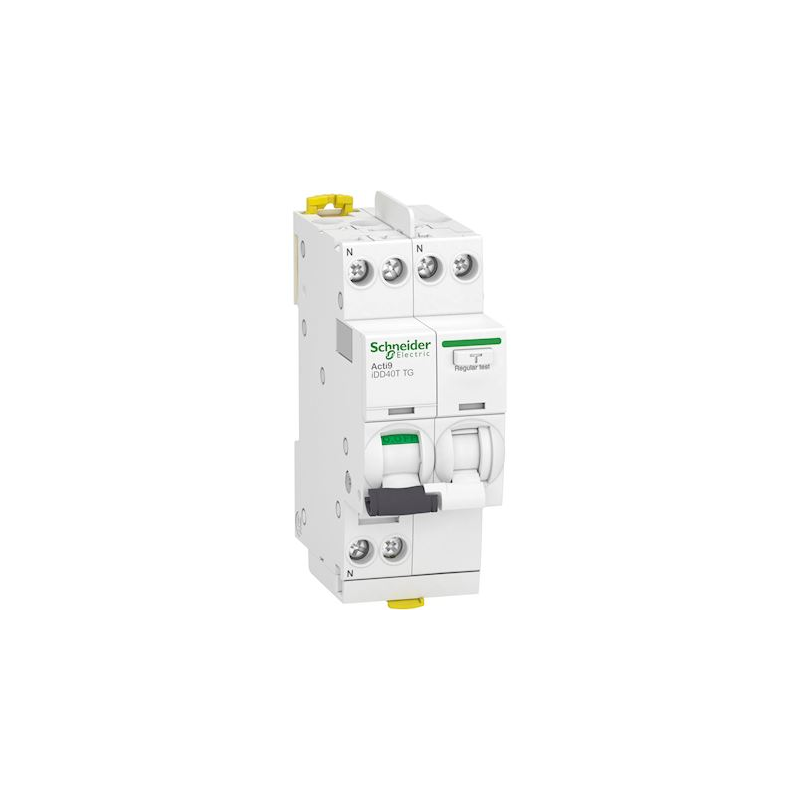

| Manufacturer | Schneider Electric |
| Reference | A9DV2632 |
| EAN | 3606481382405 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Type of differential current | AC |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 2 |
| Embedding depth | 44 mm |
| With locking device | Yes |
| Calibre | 32 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 3 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 1,0 .. 16,0 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -5,0 60,0 °C |
| Tension | 230 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 400 V |
| Shock current resistance | 0.25 kA |
