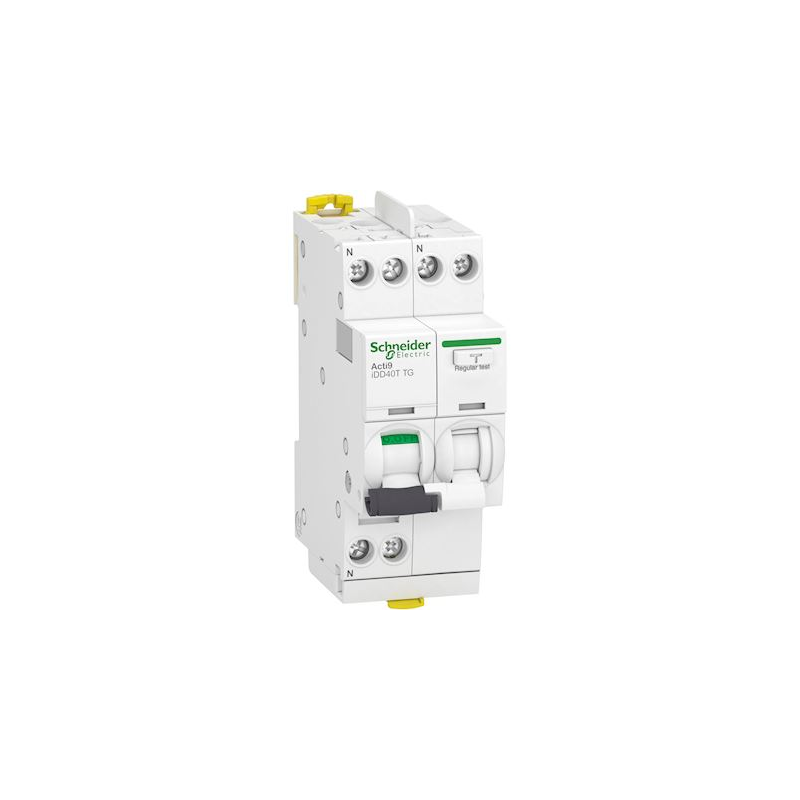

| Manufacturer | Schneider Electric |
| Reference | A9DX2640 |
| EAN | 3606481382474 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Type of differential current | A |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 2.0 |
| Embedding depth | 44.0 mm |
| With locking device | Yes |
| Calibre | 40.0 A |
| Curve | C |
| Frequency | 50Hz |
| Immune to nuisance triggers | Yes |
| Protection class (IP) | IP20 |
| Number of poles | 2.0 |
| Number of poles protected | 1.0 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 1,0 .. 16,0 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | 60,0 .. -25,0 °C |
| Tension | 230.0 V |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 400.0 V |
| Shock current resistance | 3.0 kA |
