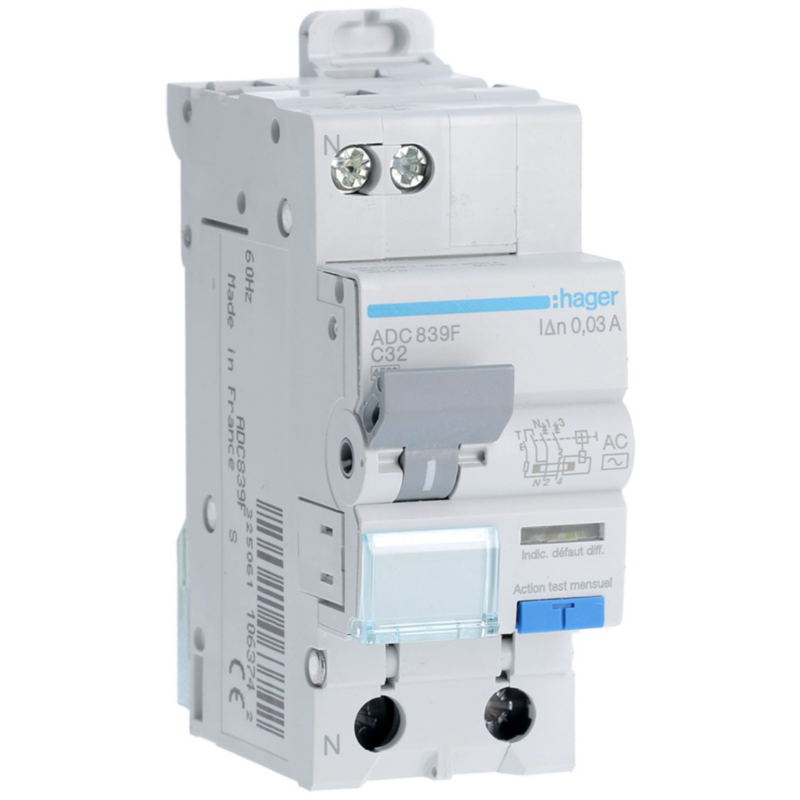

| Manufacturer | Hager |
| Reference | ADC839F |
| EAN | 3250611063742 |
| Customs code | 85362010 |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 68 mm |
| With locking device | Yes |
| Calibre | 32 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 60Hz |
| Protection class (IP) | IP20 |
| Recessed mounting | Yes |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 1 .. 25 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 .. 40 °C |
| Tension | 240 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 0.25 kA |
