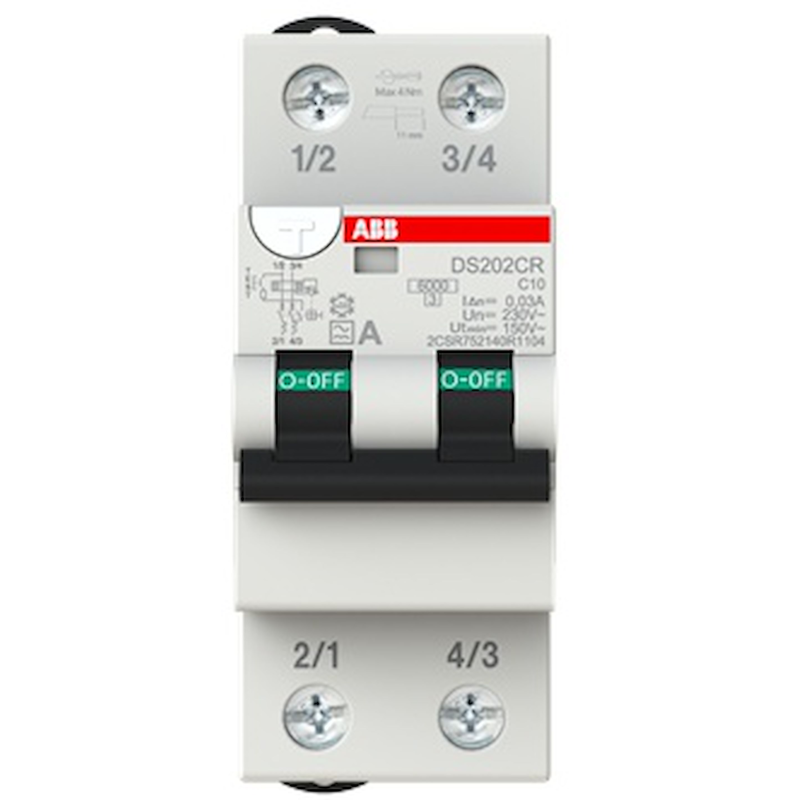

Differential circuit breaker (DS202CR) 2P (6/10kA)-10A-CBE C-30mA type A

2CSR752140R1104
4022903033677
Protection class (IP): IP20
€318.16
Tax included Delivery within 20 working days in Europe - Price for 1u.
Quantity
On order / 20 days

100% secure payments
Close
Description

Differential circuit breaker (DS202CR) 2P (6/10kA)-10A-CBE C-30mA type A - 2CSR752140R1104

Differential circuit breaker (DS202CR) 2P (6/10kA)-10A-CBE C-30mA type A
Protection class (IP)
IP20

main features - ABB 2CSR752140R1104

  • Protection class (IP): IP20
  • reference: ABB 2CSR752140R1104 / EAN: 4022903033677
ABB
ABB

Find all the products of the brand ABB at the best price on the store domeashop.com.

See all products ABB
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerABB
Reference2CSR752140R1104
EAN4022903033677
Customs code85363010
Electrical information
Type of differential currentA
Type of voltageAC
Dimensions and weight
Width in number of modules2
Embedding depth72 mm
Technical specifications
Calibre10 A
Overvoltage category3
Energy limitation class (I²t)3
CurveC
Degree of pollution3
Frequency50Hz
Protection class (IP)IP20
Number of poles2
Number of poles protected2
Neutral pole simultaneously disconnectedYes
Sensitivity0.03 A
Ambient temperature in operation-25 .. 55 °C
Tension230 V
Rated impulse withstand voltage (Uimp)4 kV
Rated insulation voltage (Ui)440 V
Shock current resistance0.25 kA
