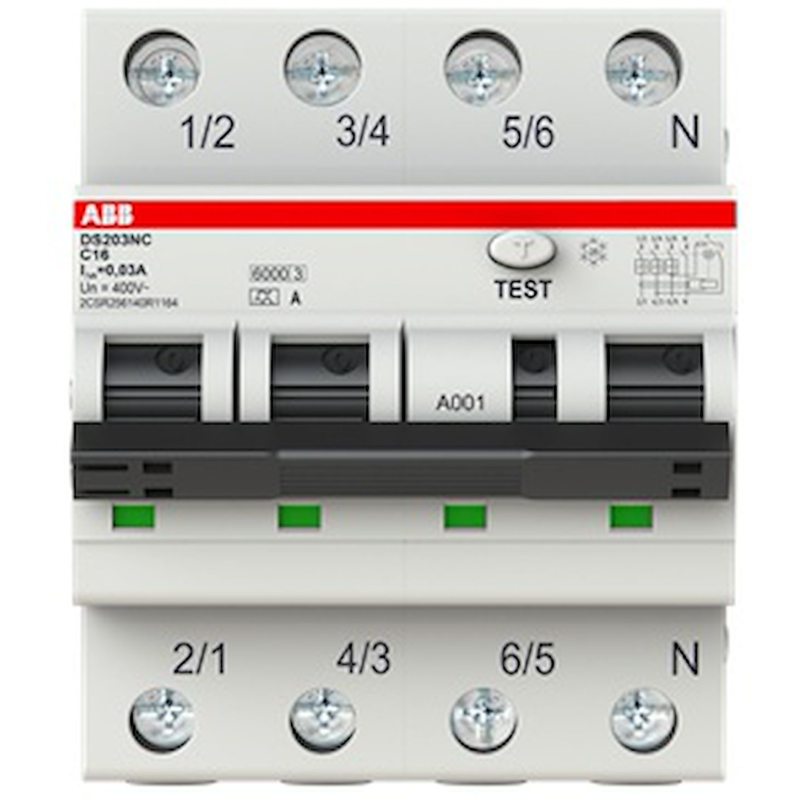

Circuit breaker DIFF. Compact 3P+N (right) 16A Icu-10kA CBE C 30mA type A

2CSR256140R1164
8012542830924
Protection class (IP): IP2X
€449.44
Tax included Delivery within 19 working days in Europe - Price for 1u.
Quantity
On order / 19 days

100% secure payments
Close
Description

Circuit breaker DIFF. Compact 3P+N (right) 16A Icu-10kA CBE C 30mA type A - 2CSR256140R1164

Circuit breaker DIFF. Compact 3P+N (right) 16A Icu-10kA CBE C 30mA type A
Protection class (IP)
IP2X

main features - ABB 2CSR256140R1164 (T283092)

  • Protection class (IP): IP2X
  • reference: ABB 2CSR256140R1164 (T283092) / EAN: 8012542830924
ABB
ABB

Find all the products of the brand ABB at the best price on the store domeashop.com.

See all products ABB
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerABB
Reference2CSR256140R1164
EAN8012542830924
Customs code85363010
Electrical information
Type of differential currentA
Type of voltageAC
Dimensions and weight
Width in number of modules4
Embedding depth69 mm
Technical specifications
With locking deviceYes
Calibre16 A
Overvoltage category3
Energy limitation class (I²t)3
CurveC
Degree of pollution2
Frequency50/60Hz
Protection class (IP)IP2X
Number of poles4
Number of poles protected3
Neutral pole simultaneously disconnectedYes
Section of connection cable rigid25 mm²
Sensitivity0.03 A
Ambient temperature in operation-25 .. 55 °C
Tension415 V
Rated impulse withstand voltage (Uimp)4 kV
Rated insulation voltage (Ui)500 V
