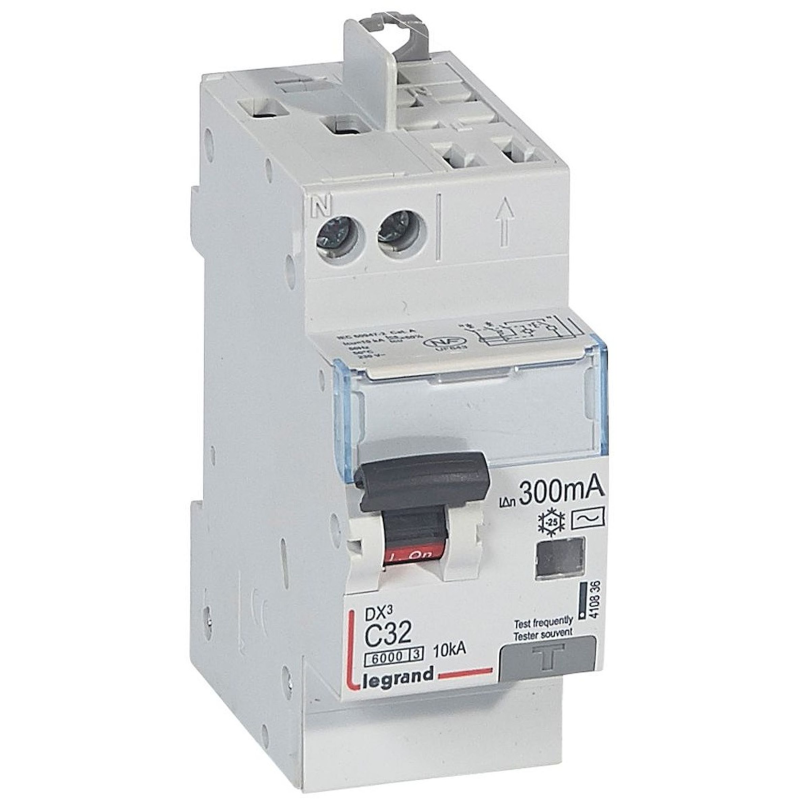

| Manufacturer | Legrand |
| Reference | 410836 |
| EAN | 3245064108362 |
| Customs code | 85362010 |
| Product line | Dx³ |
| Type of differential current | AC |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 44 mm |
| With locking device | Yes |
| Calibre | 32 A |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Recessed mounting | Yes |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 0.75 .. 16 mm² |
| Sensitivity | 0.3 A |
| Tension | 230 V |
| Shock current resistance | 0.25 kA |
