• -19%

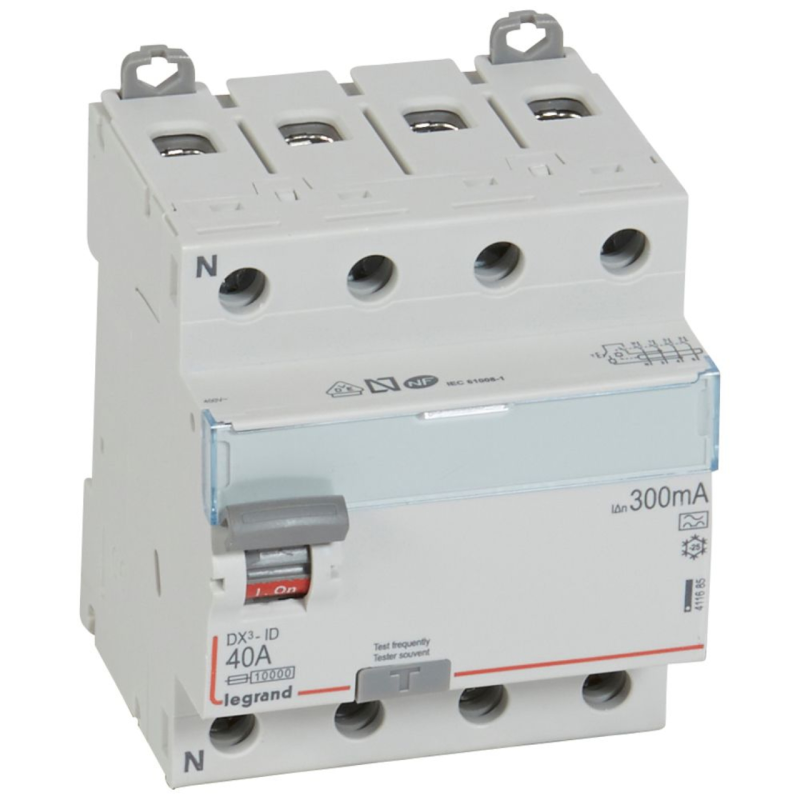

Differential switch DX³-ID up/down screws - 4P 400V~ 40A type A 300mA -4 mod

411685
3245064116855
Product line: Dx³, Protection class (IP): IP20
€532.76
€431.54 Save 19%
Tax included Delivery within 23 working days in Europe - Price for 1u.
Quantity
On order / 23 days

100% secure payments
Close
Description

Product characteristics

Differential switch DX³-ID up/down Screws - 4P 400V~ 40A type A 300mA -4 mod
Protection class (IP)
IP20

main features

  • Product line: Dx³
  • Protection class (IP): IP20
  • reference: Legrand 411685 / EAN: 3245064116855
Legrand
Legrand

Find all the products of the brand Legrand at the best price on the store domeashop.com.

See all products Legrand
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerLegrand
Reference411685
EAN3245064116855
Warranty2 years
Customs code85363030
Product lineDx³
Electrical information
Short-circuit resistance (Icw)10 kA
Type of differential currentA
Type of voltageAC
Dimensions and weight
Width in number of modules4
Embedding depth44 mm
Size (according to DIN 43880)1
Technical specifications
With locking deviceYes
Calibre40 A
Degree of pollution2
Frequency50Hz
Protection class (IP)IP20
Number of poles4
RAL number7035
Auxiliary products that can be combinedYes
Section of connection cable rigid0.75 .. 50 mm²
Sensitivity0.3 A
Ambient temperature in operation-25 .. 60 °C
Tension400 V
Rated impulse withstand voltage (Uimp)4 kV
Rated insulation voltage (Ui)500 V
Shock current resistance0.25 kA
Type of installationDIN rail
