Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.
See all products Schneider Electric
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

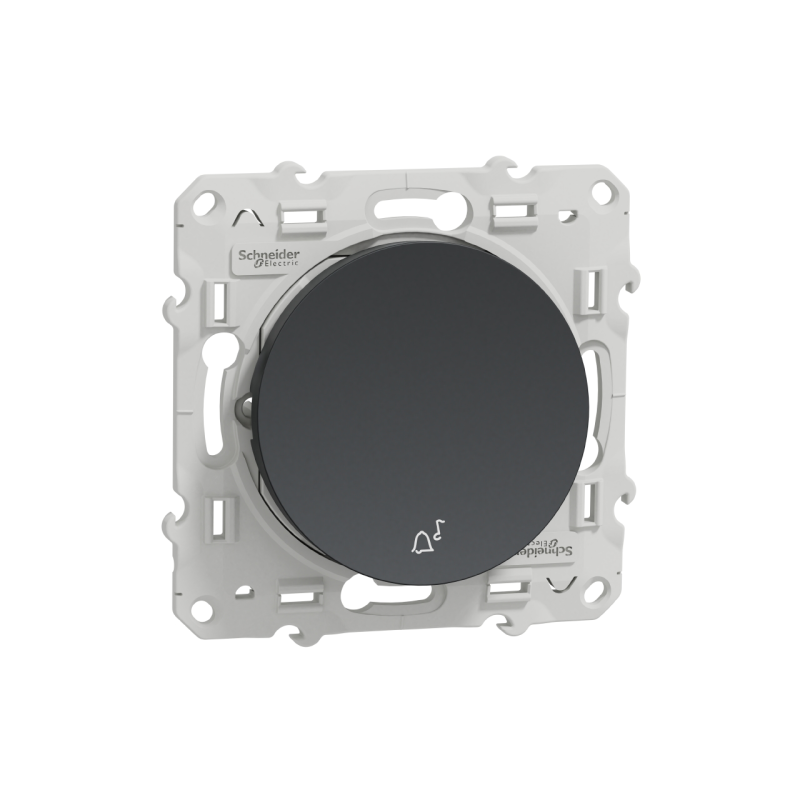

| Manufacturer | Schneider Electric |
| Reference | S540246 |
| EAN | 3606480706929 |
| Customs code | 85365080 |
| Product line | Odace |
| Color | Anthracite |
| Surface finish | Matt |
| Material | Plastic |
| Nominal voltage | 250 V |
| Unit height | 71 mm |
| Device width | 71 mm |
| Device depth | 33.6 mm |
| Min. depth of the flush-mounted box | 18.75 mm |
| With lighting | Yes |
| Calibre | 10 A |
| Contact | 1 contact with closure |
| Protection class against impacts (IK) | IK04 |
| Model type | Push button unique |
| Nombre of contacts en tant que contacts to fermeture number of contacts as make contacts | 1 |
| Nombre of contacts en tant que contacts to ouverture number of contacts as NC contacts | 0 |
| Number of contacts as changeover switches | 0 |
| Number of poles | 1 |
| RAL number | 7021 |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Untreated |
| Type of control | Push button |
| Type of connection | Automatic bollard |
| Type of mounting | Screw mounting |
| Type of installation | Built-in |
| Type of connection | File terminal |
