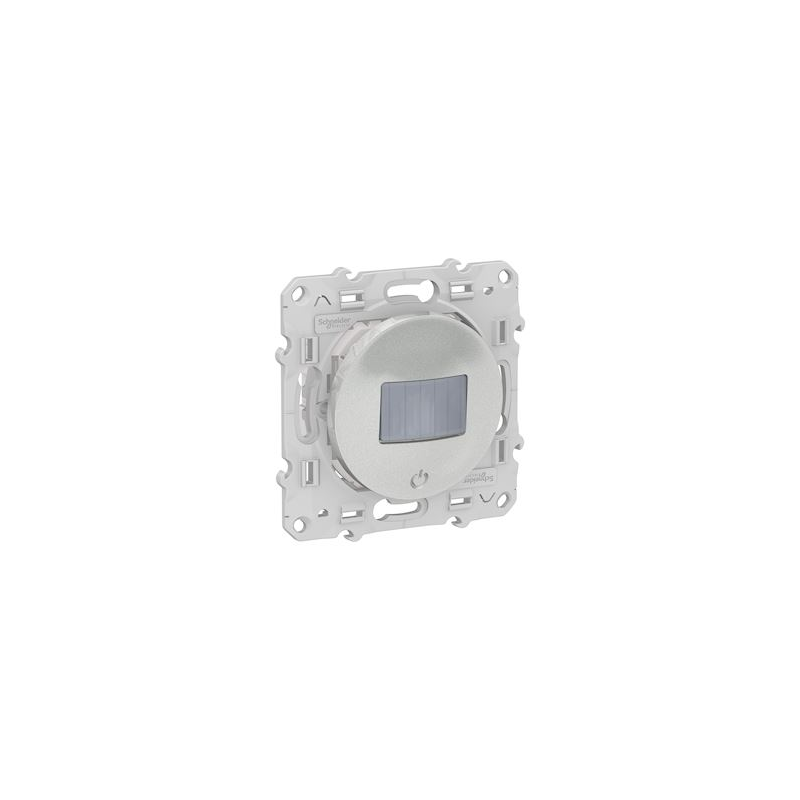

Odace 2011 - presence detector and of movement ALU - all charges - 3 wire

S530523
3606489610883
Color: Aluminum, Product line: Odace, Protection class (IP): IP21, Material: Plastic
€140.83
Tax included
Quantity
Out-of-Stock

100% secure payments
Close
Description

Odace 2011 - presence detector and of movement ALU - all charges - 3 wire - S530523

Odace 2011 - presence detector and of movement ALU - all charges - 3 wire
Protection class (IP)
IP21

main features - Schneider Electric S530523

  • Color: Aluminum
  • Product line: Odace
  • Protection class (IP): IP21
  • Material: Plastic
  • reference: Schneider Electric S530523 / EAN: 3606489610883
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceS530523
EAN3606489610883
Customs code85365080
Product lineOdace
Design and finish
ColorAluminum
Surface finishGlossy
MaterialPlastic
Electrical information
Nominal voltage230...230 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Dimensions and weight
Embedding diameter55 mm
Height71 mm
Width71 mm
Installation width55 mm
Embedding length55 mm
Depth45 mm
Embedding depth27 mm
Min. depth of the flush-mounted box46 mm
Technical specifications
Angle de détection horizontal160 °
Forced stopYes
Self-learning brightness functionNo
Control auxiliary possibleYes
Current of start max.10 A
Running time min.1 s
Frequency50 Hz
Optimum mounting height1 m
Protection class (IP)IP21
Protection class against impacts (IK)IK04
Max. span width6 m
Adjustable trigger brightnessYes
Forced operationYes
Model typeMotion sensor
Wall mountingYes
Max. detection range at H 2.58 m
Max. switching capacity2200 W
Material qualityThermoplastic
Temperature5,0 .. 35,0 °C
Surface treatmentLacquered / painted
Type of sensorInfrared
Type of connectionScrew terminal
Type of installationBuilt-in
Type of connectionScrew terminal
