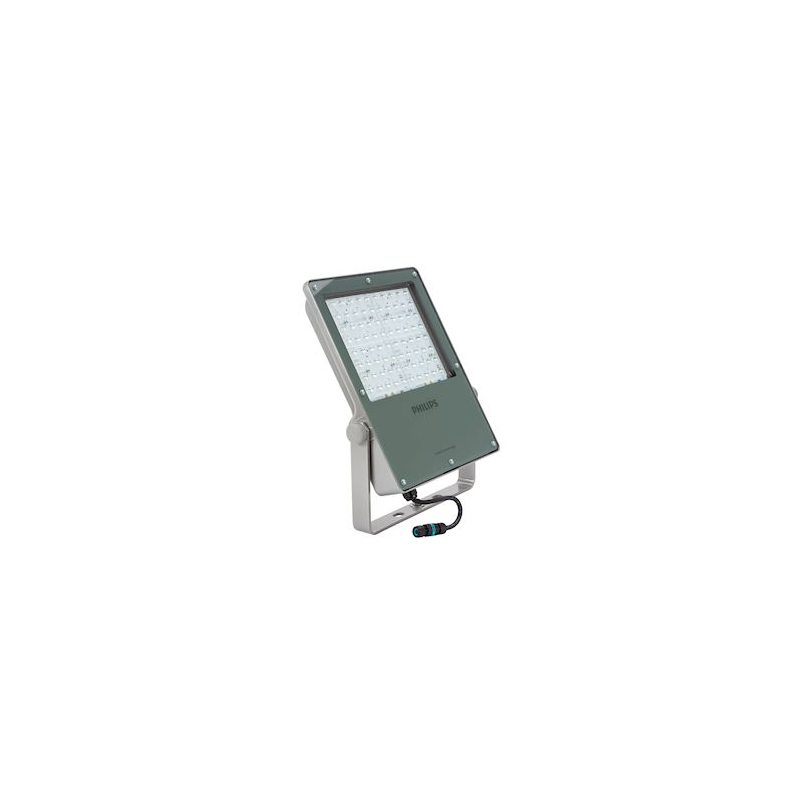

CoreLine tempo projector LED BVP130 730 On/Off ASYM 170W 21000lm IP66 100khL90

Reference 905163

EAN 8718699905163

Brand Philips

Product line: Coreline, Protection class (IP): IP66, Color rendering index (CRI): 70 .. 79, Color temperature: 3000 K

€997.84

€798.27 Save 20%

Tax included Stock: 21 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.

Quantity

In stock (21 u)

100% secure payments

Description

Description

CoreLine tempo projector LED BVP130 730 On/Off ASYM 170W 21000lm IP66 100khL90 - 905163

CoreLine tempo projector LED BVP130 730 On/Off ASYM 170W 21000lm IP66 100khL90

3000K

Extensive beam 40-80°

20500lm

IP66

class I

70 .. 79

main features - Philips 905163

Product line: Coreline
Protection class (IP): IP66
Color rendering index (CRI): 70 .. 79
Color temperature: 3000 K
reference: Philips 905163 / EAN: 8718699905163

High Quality Product

Thanks to its aluminium structure this Coreline range luminaire offers you rock-solid strength and guaranteed longevity.

Philips

Find all the products of the brand Philips at the best price on the store domeashop.com.

See all products Philips

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Philips
Reference	905163
EAN	8718699905163
Customs code	94054239
Product line	Coreline

Design and finish

Case color	Grey
Material of the glass	Glass transparent
Material	Aluminum

Light information

Beam angle	Faisceau extensif 40-80°
Color of light	White
Color rendering index (CRI)	70 .. 79

Electrical information

Class electric	I
Nominal voltage	220.0...240.0 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	No
Suitable for surface mounting	Yes
Suitable for surface mounting	Yes
Suitable for flush mounting	No
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	Yes
Suitable for rail mounting	No
Suitable for crossbar mounting	Yes

Dimensions and weight

Height/depth	40.0 mm
Width	422.0 mm
Length	340.5 mm

Technical specifications

Suitable for pendant lights	No
Integrated emergency power supply	No
Device	LED driver constant current
Exchangeable control unit	Yes
Equipment supplied	Yes
With sensor of light	No
Energy class	D
Start of phase break	No
End of phase break	No
Rated current	747.0 mA
Nominal current of the LED at constant current	705 mA
Rated life L80/B10 at 25°C	75000 h
Luminous efficacy of the lamp	156 lm/W
Luminaire efficiency	121 lm/W
Light distribution element	Diffuser
Light emission	Direct
Power factor (cos phi)	0.99
Luminous flux (Lumen)	20500.0 lm
Effective luminous flux	20000 lm
Photobiological risk group according to EN 62471	GR1
Protection class (IP)	IP66
Protection class against impacts (IK)	IK08
Intensity	1495.0 cd
Wall mounting	Yes
Number of lamps/modules	80.0
Number of poles	3
Max. number of luminaires per circuit breaker B16	7.0
Max. number of luminaires per circuit breaker C16	11.0
Fire protection "D"	No
Accepted lamp power	161 W
System power	153.0 W
Regulability	Orientable
Lumen adjustment	Continuous
Light distribution	Symmetrical
Wire surface	1.5 mm²
Connectable conductor section	7.0...14.0 mm²
Light source included	Yes
Light source included	Yes
Brushed surface	Yes
Harmonic distortion rate	5.03
Nominal room temperature according to IEC 62722-2-1	-40.0 .. 35.0 °C
Color temperature	3000 K
Glow-wire test according to IEC 60695-2-11	650 °C - 30 s
Type	LED not interchangeable
Type of wiring	Termination
Type of connection	Contact for insulation displacement connection
Type of connection	Contact for insulation displacement connection
Color uniformity (mcAdam ellipse)	SDCM3
