• -31%

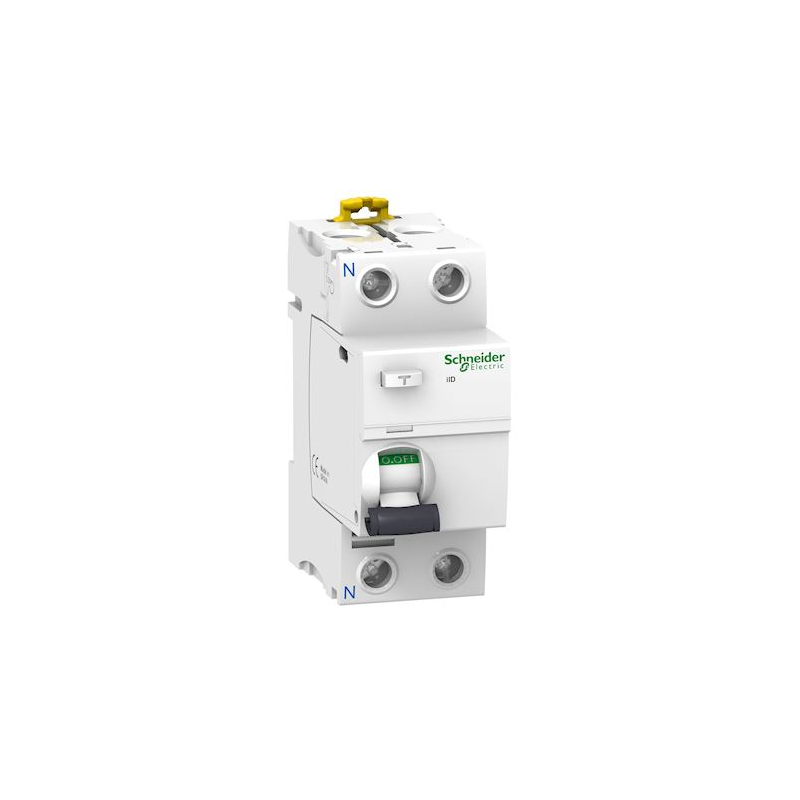

Acti9 iID differential switch 2P 63A 30mA type Asi

A9R31263
3606480374425
Product line: Acti9, Protection class (IP): IP20
€479.99
€331.19 Save 31%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Acti9 iID differential switch 2P 63A 30mA type Asi - A9R31263

Acti9 iID differential switch 2P 63A 30mA type Asi
Protection class (IP)
IP20

main features - Schneider Electric A9R31263

  • Product line: Acti9
  • Protection class (IP): IP20
  • reference: Schneider Electric A9R31263 / EAN: 3606480374425
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9R31263
EAN3606480374425
Customs code85362010
Product lineActi9
Electrical information
Short-circuit resistance (Icw)1.5 kA
Type of differential currentA
Type of voltageAC
Dimensions and weight
Width in number of modules2
Embedding depth44 mm
Size (according to DIN 43880)2
Technical specifications
With locking deviceYes
Calibre63 A
Degree of pollution3
Frequency50/60Hz
Protection class (IP)IP20
Number of poles2
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 35,0 mm²
Sensitivity0.03 A
Ambient temperature in operation-25,0 60,0 °C
Tension230 V
Rated impulse withstand voltage (Uimp)6 kV
Rated insulation voltage (Ui)500 V
Shock current resistance3 kA
Type of installationDIN rail
