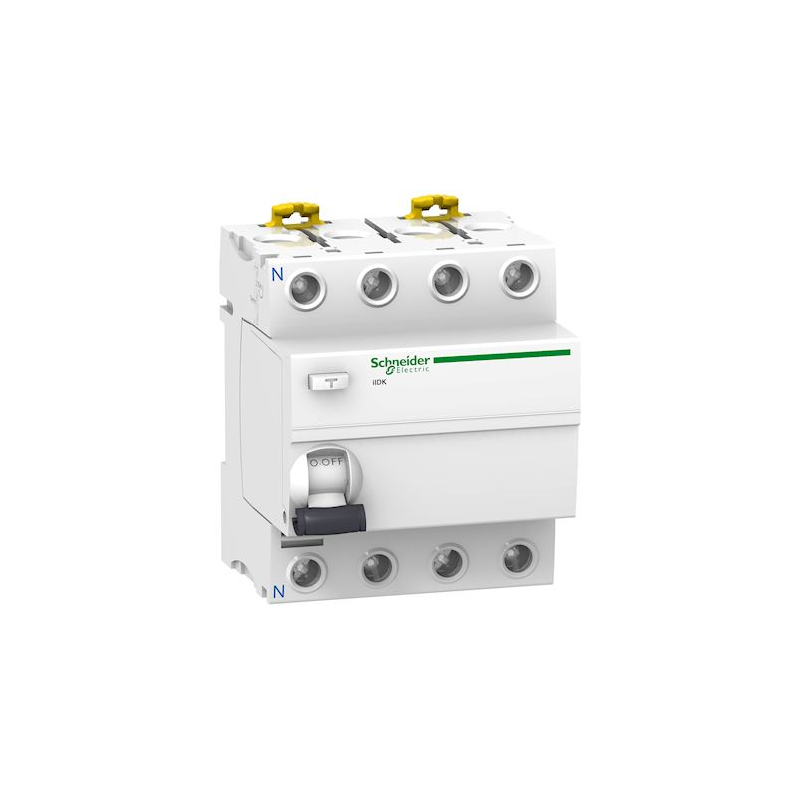

Acti9 iIDK - switch DIFF - 4P - 25A - 500A/4,5kA - 300mA - type AC

A9R56425
3606480688485
Product line: Acti9 idt40, Protection class (IP): IP40
€228.07
€184.74 Save 19%
Tax included Logistics platform stock: 11 (+ on order) - Delivery within 16 working days in Europe - Price for 1u.
Quantity
On order / 16 days

100% secure payments
Close
Description

Acti9 iIDK - switch DIFF - 4P - 25A - 500A/4,5kA - 300mA - type AC - A9R56425

Acti9 iIDK - switch DIFF - 4P - 25A - 500A/4,5kA - 300mA - type AC
Protection class (IP)
IP40

main features - Schneider Electric A9R56425

  • Product line: Acti9 idt40
  • Protection class (IP): IP40
  • reference: Schneider Electric A9R56425 / EAN: 3606480688485
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9R56425
EAN3606480688485
Customs code85362010
Product lineActi9 idt40
Electrical information
Type of differential currentAC
Type of voltageAC
Dimensions and weight
Width in number of modules4
Embedding depth44 mm
Size (according to DIN 43880)4
Technical specifications
Calibre25 A
Degree of pollution2
Frequency50/60Hz
Protection class (IP)IP40
Number of poles4
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 35,0 mm²
Sensitivity0.3 A
Ambient temperature in operation-5,0 60,0 °C
Tension400 V
Rated impulse withstand voltage (Uimp)4 kV
Rated insulation voltage (Ui)440 V
Shock current resistance0.25 kA
Type of installationDIN rail
