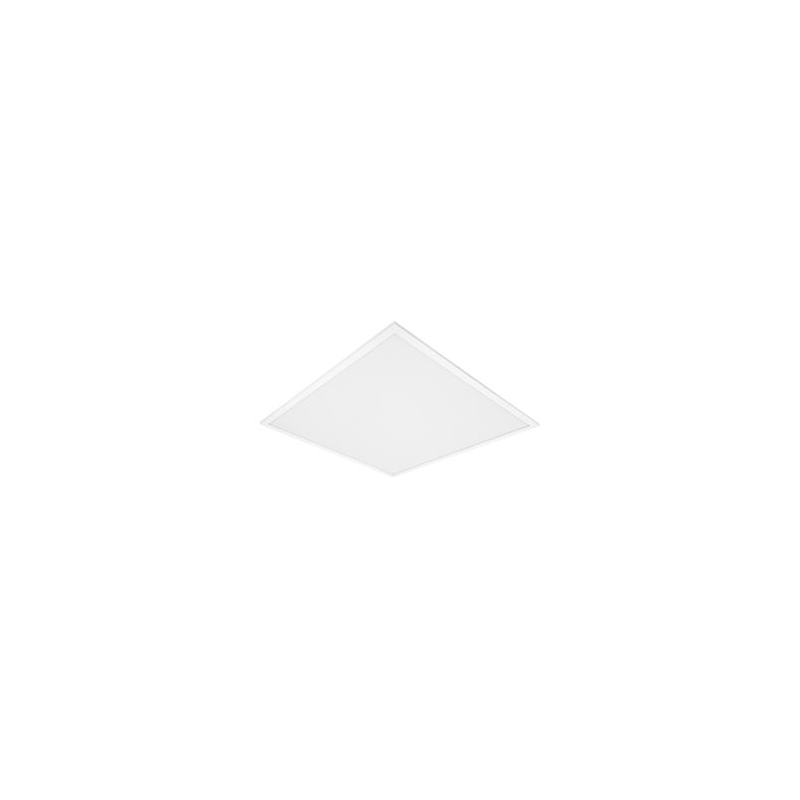

PL eco 600 36W/4000K 3240lm UGR19 PANEL

Reference 386709

EAN 4058075386709

Brand Ledvance

Product line: Performance, Protection class (IP): IP40, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K

€96.76

€78.37 Save 19%

Tax included

Quantity

Out-of-Stock

100% secure payments

Description

Description

Product characteristics

PL eco 600 36W/4000K 3240lm UGR19 PANEL

4000K

very extensive beam +80°

IP40

class II

80 .. 89

main features

Product line: Performance
Protection class (IP): IP40
Color rendering index (CRI): 80 .. 89
Color temperature: 4000 K
reference: Ledvance 386709 / EAN: 4058075386709

High Quality Product

By offering an extended warranty to 3 years, Ledvance ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Performance range luminaire offers you rock-solid strength and guaranteed longevity.

Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Ledvance
Reference	386709
EAN	4058075386709
Warranty	3 years
Customs code	94051190
Product line	Performance

Design and finish

Case color	White
Finishing of the louver	Ultra glossy
Material of the glass	Opaline plastic
Material	Aluminum

Light information

Beam angle	Faisceau très extensif +80°
Color of light	White
Color rendering index (CRI)	80 .. 89

Electrical information

Class electric	II
Nominal voltage	220...240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Suitable for surface mounting	Yes
Suitable for flush mounting	Yes

Dimensions and weight

Height/depth	34 mm
Installation height/depth	50 mm
Width	595 mm
Installation width	580 mm
Length	595 mm
Embedding length	580 mm

Technical specifications

Suitable for pendant lights	Yes
Integrated emergency power supply	No
Device	Ballast electronic
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
Start of phase break	No
End of phase break	No
Rated current	750 mA
Nominal current of the LED at constant current	750 mA
Rated life L70/B10 at 25°C	50000 h
Rated life L70/B50 at 25°C	50000 h
Luminaire efficiency	90 lm/W
Light distribution element	Diffuser
Light emission	Direct
Glare assessment (UGR)	19
Power factor (cos phi)	0.95
Effective luminous flux	3240 lm
Photobiological risk group according to EN 62471	GR0
Protection class (IP)	IP40
Protection class against impacts (IK)	IK02
Number of lamps/modules	2
Number of poles	2
Max. number of luminaires per circuit breaker B16	19
Max. number of luminaires per circuit breaker C16	30
System power	36 W
Light distribution	Symmetrical
Light source included	Yes
Light source included	Yes
Harmonic distortion rate	15
Nominal room temperature according to IEC 62722-2-1	-10 .. +45 °C
Color temperature	4000 K
Glow-wire test according to IEC 60695-2-11	650 °C - 30 s
Type	LED not interchangeable
Type of wiring	Termination
Type of connection	Automatic bollard
Type of connection	File terminal
Color uniformity (mcAdam ellipse)	SDCM6
Variation according to the order	Yes
