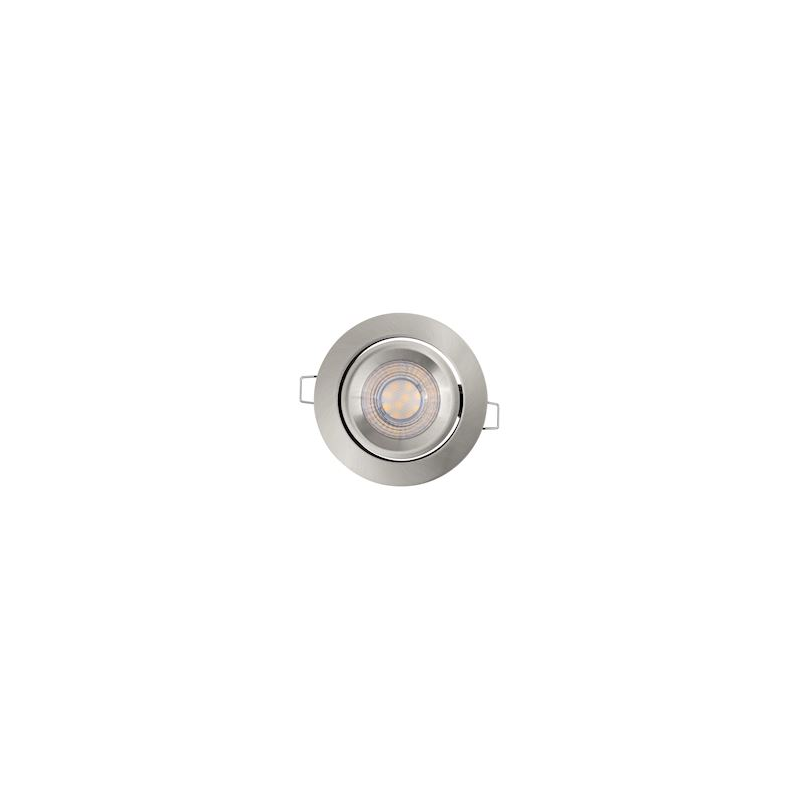

Spot light set dimmable 3x4,9W 3000K gray

Reference 617766

EAN 4058075617766

Brand Ledvance

Product line: Value, Protection class (IP): IP20, Color rendering index (CRI): 80 .. 89, Color temperature: 2700K

€144.08

€115.27 Save 20%

Tax included Delivery within 14 working days in Europe - Price for 1u.

Quantity

On order / 14 days

100% secure payments

Description

Description

Spot light set dimmable 3x4,9W 3000K gray - 617766

Spot light set dimmable 3x4,9W 3000K gray

2700K

very extensive beam +80°

380-380lm

IP20

class II

80 .. 89

main features - Ledvance 617766

Product line: Value
Protection class (IP): IP20
Color rendering index (CRI): 80 .. 89
Color temperature: 2700K
reference: Ledvance 617766 / EAN: 4058075617766

High Quality Product

Thanks to its aluminium structure this Value range luminaire offers you rock-solid strength and guaranteed longevity.

Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Ledvance
Reference	617766
EAN	4058075617766
Customs code	94054239
Product line	Value

Design and finish

Material	Aluminum

Light information

Beam angle	Faisceau très extensif +80°
Color of light	White
Color rendering index (CRI)	80 .. 89

Electrical information

Class electric	II
Nominal voltage	220 .. 240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Suitable for flush mounting	Yes
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	No
Suitable for crossbar mounting	No

Dimensions and weight

Diameter	90 mm
Height/depth	27.5 mm
Width	90 mm
Installation width	70.0 mm
Length	90 mm
Embedding length	70.0 mm

Technical specifications

Suitable for pendant lights	No
Integrated emergency power supply	No
Exchangeable control unit	No
Equipment supplied	Yes
With sensor of light	No
Energy class	E
IFTTT compatible	Yes
Start of phase break	No
End of phase break	No
Rated current	38-38 mA
Nominal current of the LED at constant current	38 mA
Integrated diameter	75-80 mm
Rated life L70/B50 at 25°C	15000 h
Luminaire efficiency	90 lm/W
Power factor (cos phi)	0.4
Luminous flux (Lumen)	380-380 lm
Effective luminous flux	380 lm
Photobiological risk group according to EN 62471	GR1
Protection class (IP)	IP20
Protection class against impacts (IK)	IK03
Wall mounting	No
Number of lamps/modules	3
Number of poles	2
Fire protection "D"	No
System power	4.9 W
Light source included	Yes
Brushed surface	No
Harmonic distortion rate	20
Nominal room temperature according to IEC 62722-2-1	-20-+40 °C
Color temperature	2700K
Type of wiring	Termination
Color uniformity (mcAdam ellipse)	SDCM6
