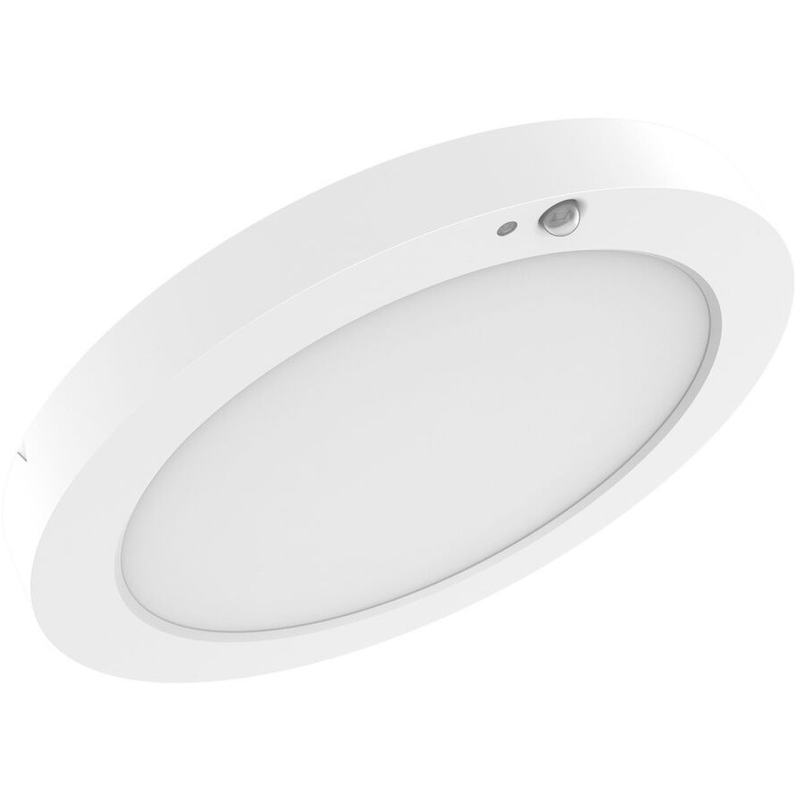

Downlight LED universal PIR DN65..185 9/18W 830/840 1150..2300lm IP44 Multi Select

541414
4099854541414
Downlight LED UNIV PIR DN65..185 9/18W 830/840 1150..2300lm IP44 Multi Select
€103.42
Tax included Delivery within 14 working days in Europe - Price for 1u.
Quantity
On order / 14 days

100% secure payments
Close
Description

Downlight LED universal PIR DN65..185 9/18W 830/840 1150..2300lm IP44 Multi Select - 541414

Downlight LED universal PIR DN65..185 9/18W 830/840 1150..2300lm IP44 Multi Select
Color temperature
4000K
Beam angle
very extensive beam +80°
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features - Ledvance 541414

  • Product line: Value
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Ledvance 541414 / EAN: 4099854541414
Ledvance
Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerLedvance
Reference541414
EAN4099854541414
Customs code94051140
Product lineValue
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Adjustable color temperatureLevels
Electrical information
Class electricII
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Dimensions and weight
Diameter227 mm
Height/depth22 mm
Width227 mm
Length227 mm
Technical specifications
DeviceBallast electronic
Exchangeable control unitNo
Equipment suppliedYes
With sensor twilightYes
With sensor of movementYes
Energy classC
IFTTT compatibleYes
Rated current83 mA
Integrated diameter65...185 mm
Rated life L70/B50 at 25°C100000 h
Light distribution elementDiffuser
Light emissionDirect
Power factor (cos phi)0.9
Photobiological risk group according to EN 62471GR0
Protection class against impacts (IK)IK03
Wall mountingNo
Number of poles2
Max. number of luminaires per circuit breaker B1639
Max. number of luminaires per circuit breaker C1650
System power18 W
RegulabilityNot adjustable
Lumen adjustmentLevels
Light distributionSymmetrical
Light source includedYes
Brushed surfaceNo
Nominal room temperature according to IEC 62722-2-1-20 .. 40 °C
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Type of connectionAutomatic bollard
Interface
Control via bluetoothNo
