• -19%

Lightning arrester 12,5kA L-(PE) N

SPBT12-280/1
4015081548842
Protection class (IP): IP20
€203.52
€164.85 Save 19%
Tax included Delivery within 28 working days in Europe - Price for 1u.
Quantity
On order / 28 days

100% secure payments
Close
Description

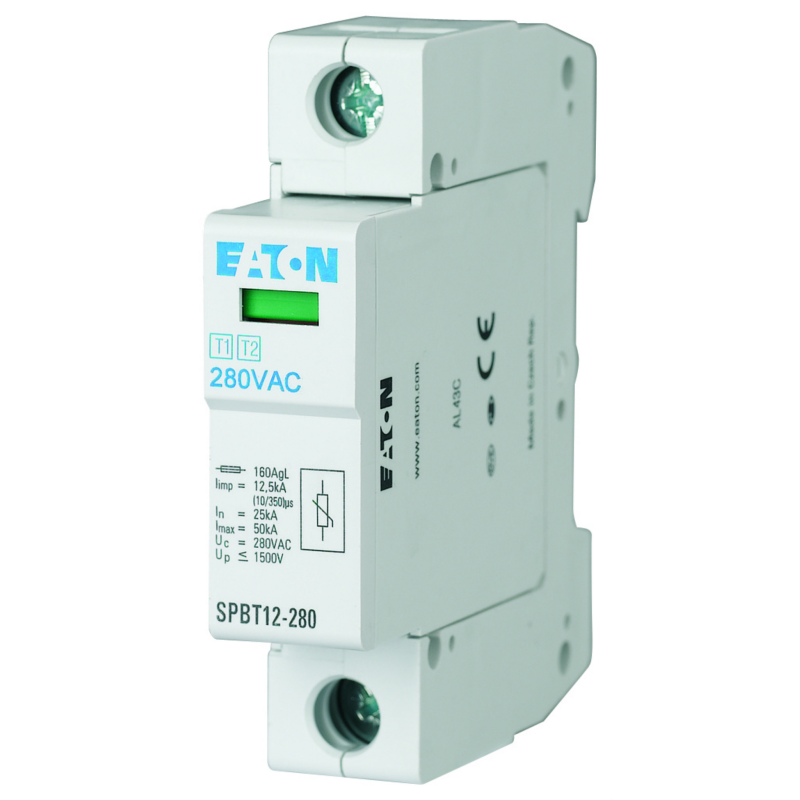

Lightning arrester 12,5kA L-(PE) N - SPBT12-280/1

Lightning arrester 12,5kA L-(PE) N
Protection class (IP)
IP20

main features - Eaton SPBT12-280/1

  • Protection class (IP): IP20
  • reference: Eaton SPBT12-280/1 / EAN: 4015081548842
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerEaton
ReferenceSPBT12-280/1
EAN4015081548842
Customs code85365080
Dimensions and weight
Technical specifications
With remote signaling contactNo
Test classType 1 and 2
Nominal discharge current (8/20)25 kA
Lightning current (10/350)12.5 kA
Form of network TNYes
Form of network TN-SYes
Form of network TTNo
Protection class (IP)IP20
Number of poles1
Max. flexible conductor cross-section (fine thread)35 mm²
Max. rigid conductor cross-section (single wire/multi wire)25 mm²
Signalling at the deviceOptics
Highest direct voltage CA280 V
Nominal voltage CA280 V
Type of installationTop-hat rail 35mm
Up1.5 kV
