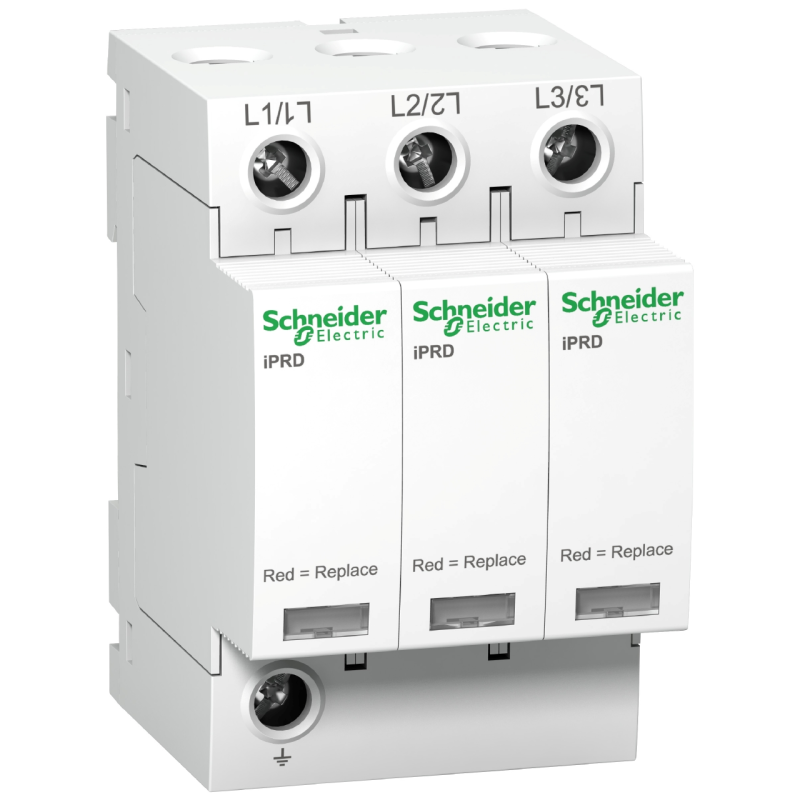

| Manufacturer | Schneider Electric |
| Reference | A9L65321 |
| EAN | 3606480801648 |
| Customs code | 85363030 |
| Product line | Acti9 parafoudre |
| With remote signaling contact | Yes |
| Test class type 2 | Yes |
| Max. discharge shock current (8/20) | 65.0 kA |
| Nominal discharge current (8/20) | 20.0 kA |
| Form of network IT | Yes |
| Form of network TN-S | No |
| Form of network TT | No |
| Protection class (IP) | IP20 |
| Level of protection L-N | 2.0 kV |
| Number of wires (without grounding) | 3.0 |
| Short-circuit resistance (Isccr) | 50.0 kA |
| Max. flexible conductor cross-section (fine thread) | 16.0 mm² |
| Max. rigid conductor cross-section (single wire/multi wire) | 25.0 mm² |
| Signalling at the device | Optics |
| Highest direct voltage CA | 460 V |
| Nominal voltage CA | 400 V |
| Type of installation | Top-hat rail 35mm |
| Up | 2.3 kV |
