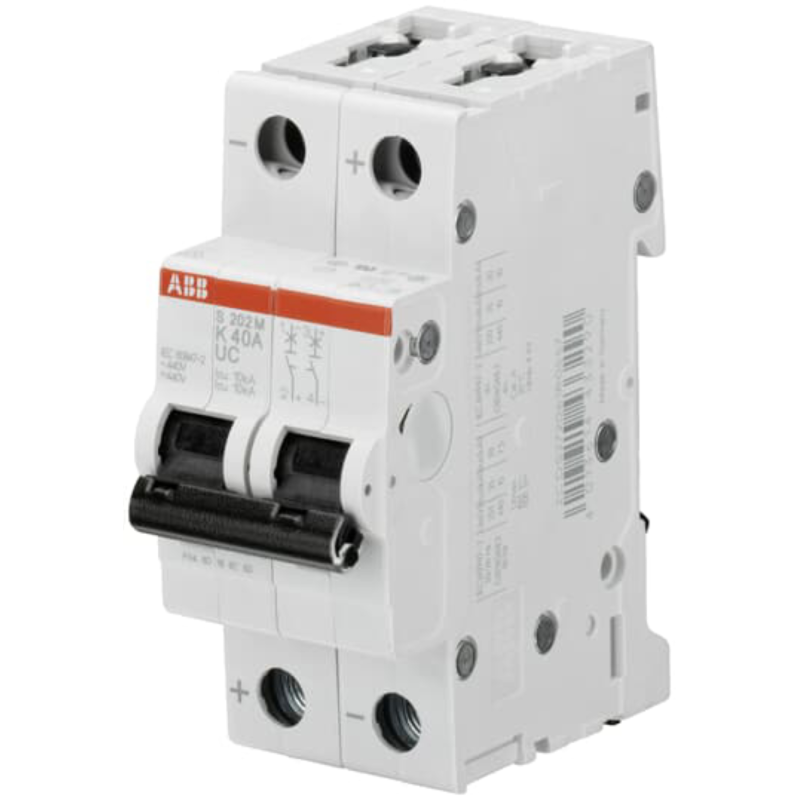

| Manufacturer | ABB |
| Reference | 2CDS272061R0318 |
| EAN | 4013614433375 |
| Customs code | 85362010 |
| Product line | S200 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | No |
| Width in number of modules | 2 |
| Embedding depth | 69 mm |
| Calibre | 3 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | Z |
| Degree of pollution | 3 |
| Frequency | 50 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Ambient temperature in operation | -25 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
