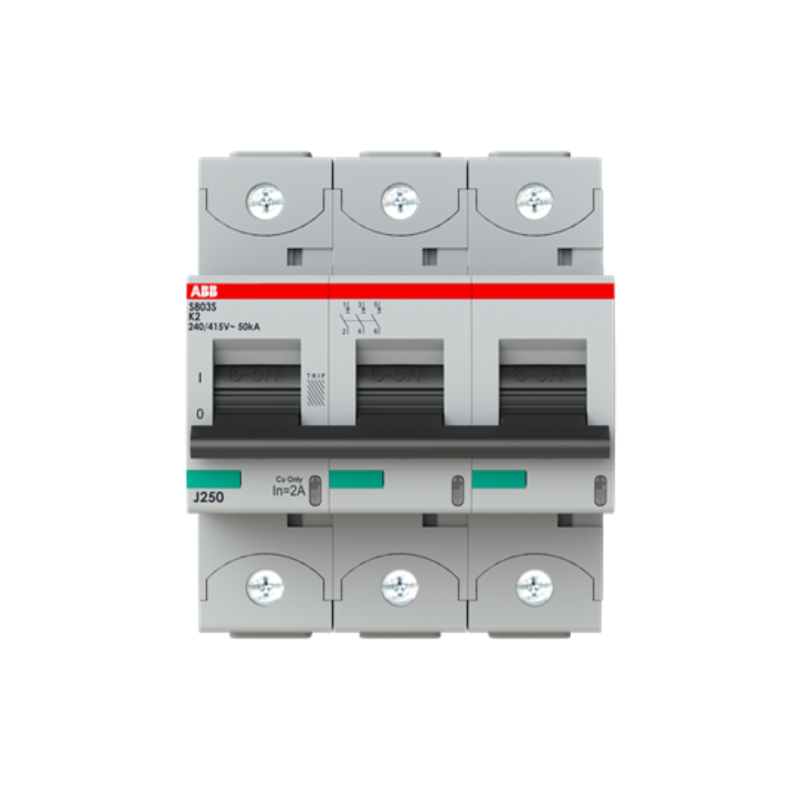

| Manufacturer | ABB |
| Reference | 2CCF019956R0001 |
| EAN | 7612271500221 |
| Customs code | 85362010 |
| Product line | S800 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | Yes |
| Width in number of modules | 4.5 |
| Embedding depth | 82.5 mm |
| Calibre | 2 A |
| Overvoltage category | 4 |
| Energy limitation class (I²t) | 3 |
| Degree of pollution | 3 |
| Frequency | 50 Hz |
| Frequency | 50 .. 60 Hz |
| Protection class (IP) | IP20 |
| Recessed mounting | Yes |
| Number of poles | 3 |
| Number of poles protected | 3 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1 .. 50 mm² |
| Section of connection cable rigid | 70 mm² |
| Ambient temperature in operation | -25 °C |
| Ambient temperature in operation | -40 .. 70 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated insulation voltage (Ui) | 690 V |
