• -20%

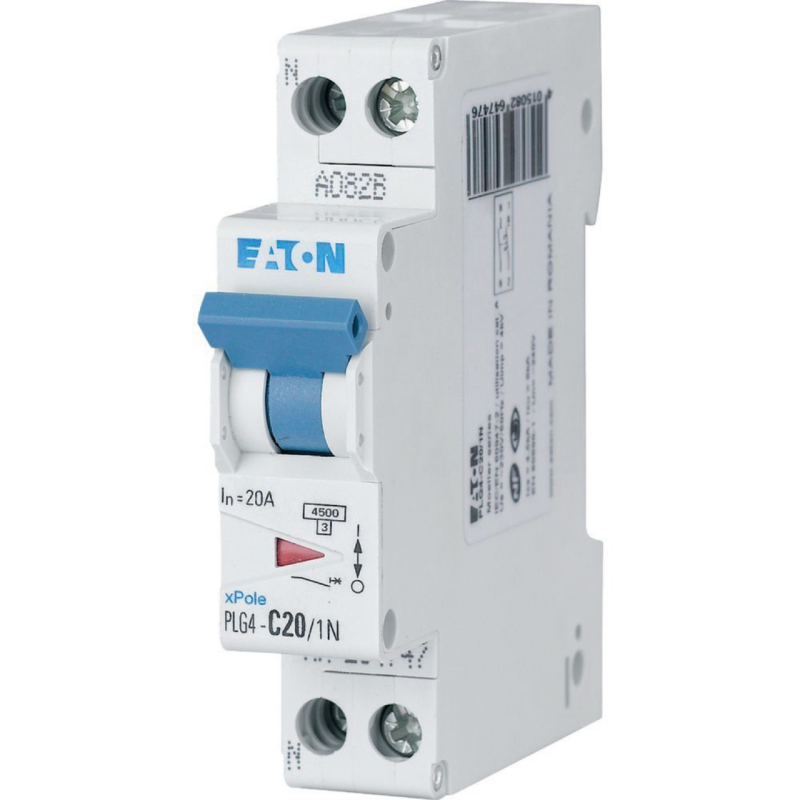

Modular circuit breaker 1P+N 20A curve C 4,5kA (at 60898) - set of 12u.

PLG4-C20/1N
4015082647476
Product line: Xpole plg, Protection class (IP): IP20
€483.79
€387.03 Save 20%
Tax included Delivery within 23 working days in Europe - Price for 12u.
Quantity
On order / 23 days

100% secure payments
Description

Product characteristics

Modular circuit breaker 1P+N 20A curve C 4,5kA (at 60898) - set of 12u.
Protection class (IP)
IP20

main features

  • Product line: Xpole plg
  • Protection class (IP): IP20
  • reference: Eaton PLG4-C20/1N / EAN: 4015082647476
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerEaton
ReferencePLG4-C20/1N
EAN4015082647476
Warranty2 years
Customs code85363030
Product lineXpole plg
Electrical information
Type of voltageAC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules1
Embedding depth70.5 mm
Technical specifications
Calibre20 A
Overvoltage category3
Energy limitation class (I²t)3
CurveC
Degree of pollution2
Frequency50 - 60 Hz
Protection class (IP)IP20
Number of poles2
Neutral pole simultaneously disconnectedYes
Auxiliary products that can be combinedYes
Ambient temperature in operation-25 - 75 °C
Tension230 V
Rated impulse withstand voltage (Uimp)4 kV
Rated insulation voltage (Ui)440 V
