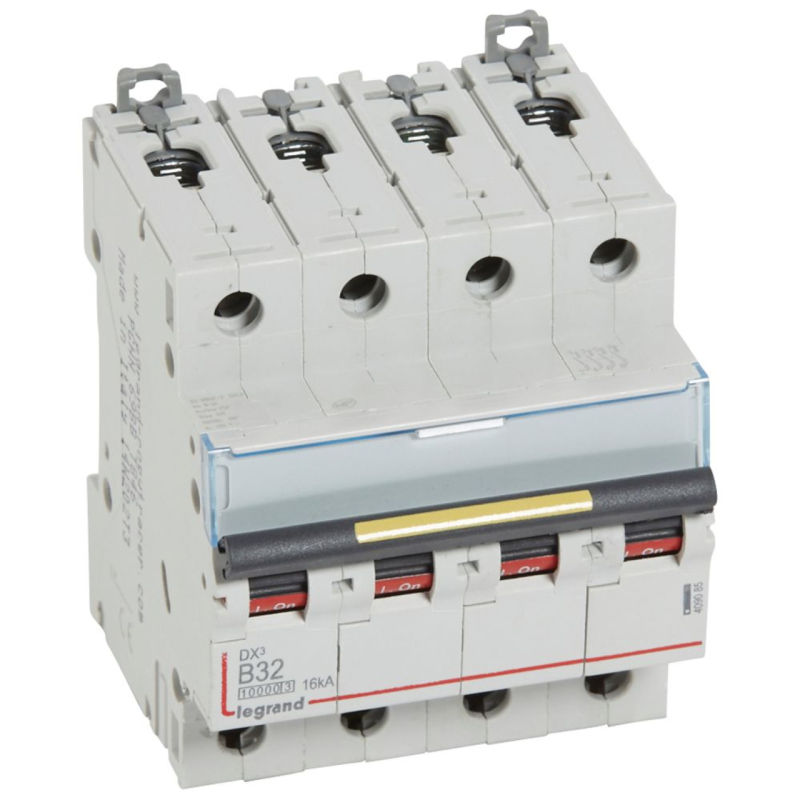

| Manufacturer | Legrand |
| Reference | 409085 |
| EAN | 3245064090858 |
| Customs code | 85362010 |
| Product line | Dx³ |
| Type of voltage | AC |
| Suitable for flush mounting | Yes |
| Width in number of modules | 4 |
| Embedding depth | 44 mm |
| Calibre | 32 A |
| Energy limitation class (I²t) | 3 |
| Curve | B |
| Degree of pollution | 2 |
| Frequency | 50 .. 60 Hz |
| Protection class (IP) | IP20 |
| Recessed mounting | Yes |
| Number of poles | 4 |
| Number of poles protected | 4 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1.5 .. 35 mm² |
| Ambient temperature in operation | -25 .. 70 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
