• -32%

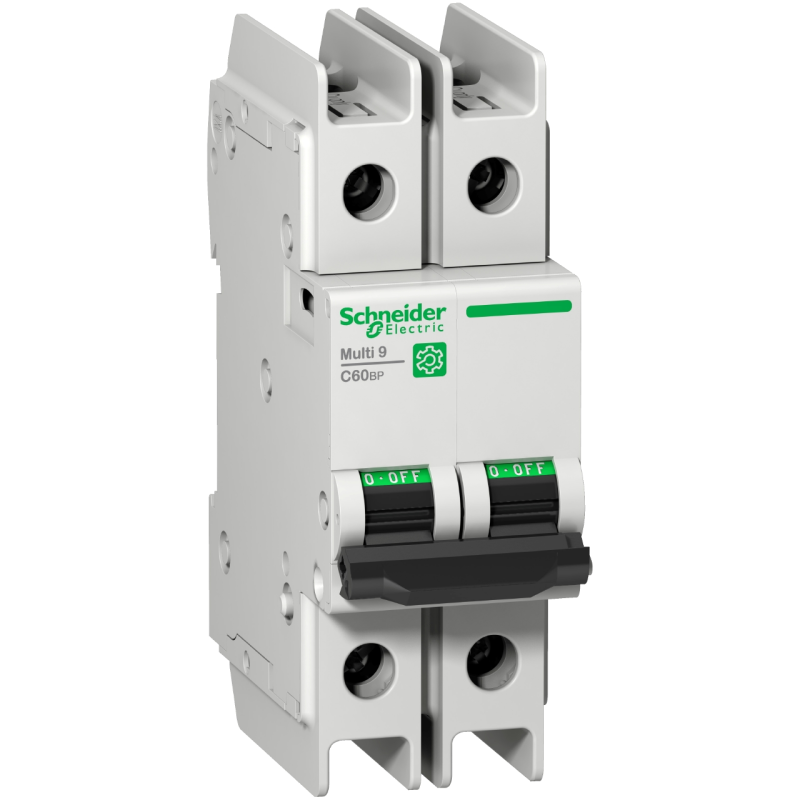

Miniature circuit breaker 10A Multi9 C60BP - 2 clusters - 10kA / 480Y-277V - curve D - standard UL489

M9F43210
3606481170309
Product line: Multi9, Protection class (IP): IP20
€159.94
€108.76 Save 32%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Miniature circuit breaker 10A Multi9 C60BP - 2 clusters - 10kA / 480Y-277V - curve D - standard UL489 - M9F43210

Miniature circuit breaker 10A Multi9 C60BP - 2 clusters - 10kA / 480Y-277V - curve D - standard UL489
Protection class (IP)
IP20

main features - Schneider Electric M9F43210

  • Product line: Multi9
  • Protection class (IP): IP20
  • reference: Schneider Electric M9F43210 / EAN: 3606481170309
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceM9F43210
EAN3606481170309
Customs code85362010
Product lineMulti9
Electrical information
Type of voltageAC/DC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules4.0
Embedding depth48.0 mm
Technical specifications
Calibre10.0 A
Energy limitation class (I²t)3
CurveD
Frequency50,0 .. 60,0 Hz
Protection class (IP)IP20
Number of poles2.0
Number of poles protected2.0
Neutral pole simultaneously disconnectedYes
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 25,0 mm²
Ambient temperature in operation-30,0 .. 70,0 °C
Tension277.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)500.0 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric M9F43210
documentationProduct sheet - Schneider Electric M9F43210
documentationEnvironmental profile - Schneider Electric M9F43210
