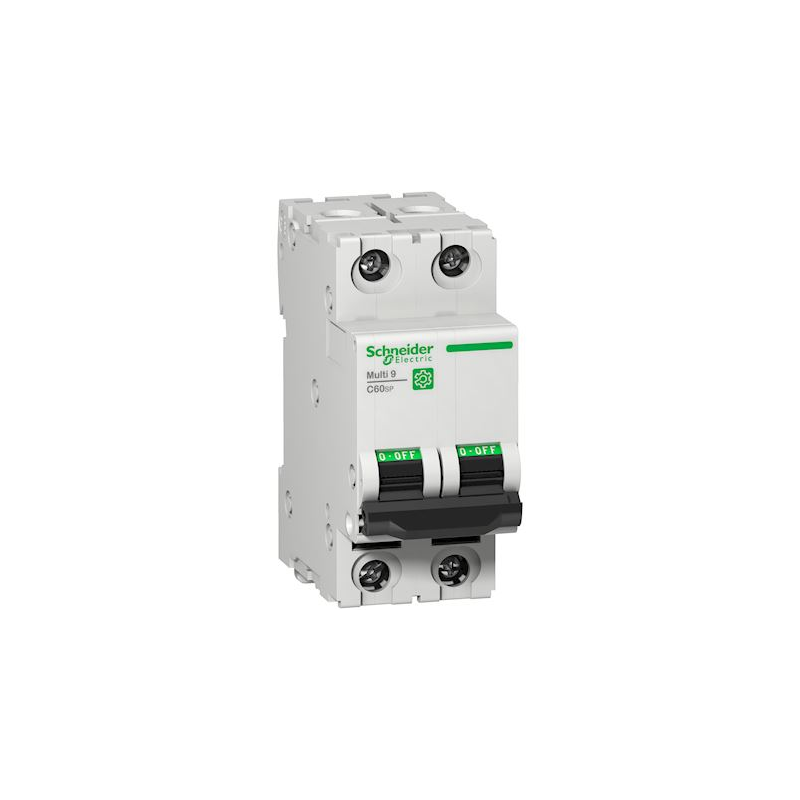

| Manufacturer | Schneider Electric |
| Reference | M9F23206 |
| EAN | 3606481169013 |
| Customs code | 85362010 |
| Product line | Multi9 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | No |
| Width in number of modules | 4 |
| Embedding depth | 44 mm |
| Calibre | 6 A |
| Overvoltage category | 4 |
| Energy limitation class (I²t) | 3 |
| Curve | D |
| Degree of pollution | 3 |
| Frequency | 50 .. 60 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Number of poles protected | 2 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1 .. 25 mm² |
| Ambient temperature in operation | -30 .. 70 °C |
| Tension | 277 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500 V |
