| Manufacturer | Schneider Electric |

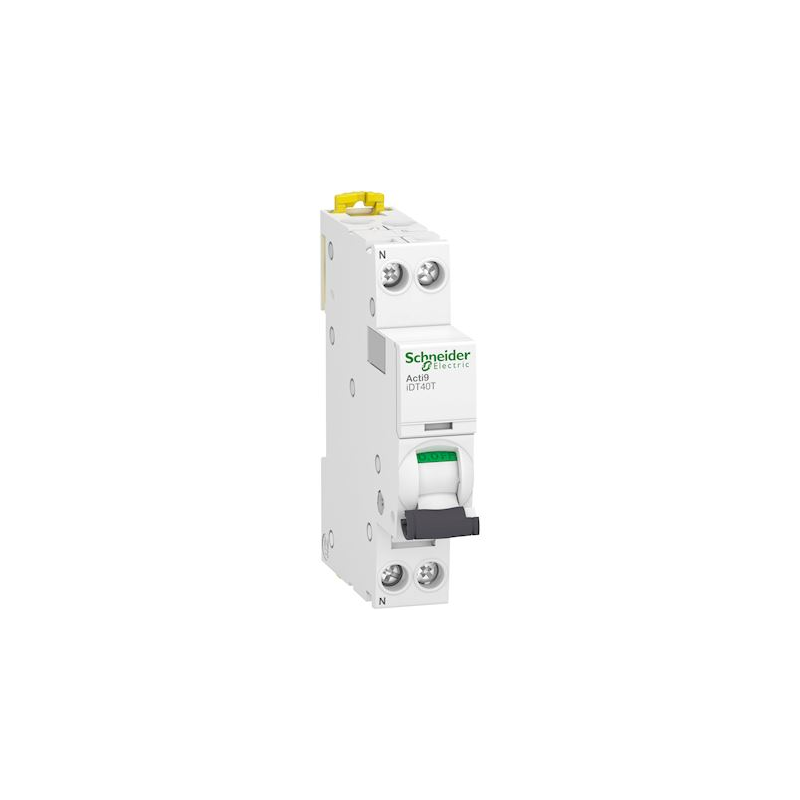

| Reference | A9P22625 |
| EAN | 3606481381354 |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 1 |
| Embedding depth | 44 mm |
| Calibre | 25 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 3 |
| Frequency | 50,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 16,0 .. 1,0 mm² |
| Ambient temperature in operation | -25,0 70,0 °C |
| Tension | 230 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 400 V |
Reference: A9F94232
Acti9 iC60L - circuit breaker - 2P - 32A - curve C - 400Vac - 15000A/20kA
Reference: A9F92216
Acti9 iC60L - circuit breaker - 2P - 16A - curve Z - 400Vac - 15000A/25kA
Reference: A9F95216
Acti9 iC60L - circuit breaker - 2P - 16A - curve k - 400Vac - 15000A/25kA
Reference: A9F94201
Acti9 iC60L - circuit breaker - 2P - 1A - curve C - 400Vac - 15000A/100kA
Reference: A9F94216
Acti9 iC60L - circuit breaker - 2P - 16A - curve C - 400Vac - 15000A/25kA
Reference: A9F92202
Acti9 iC60L - circuit breaker - 2P - 2A - curve Z - 400Vac - 15000A/100kA
Reference: A9P24720
Acti9 iDT40N - modular circuit breaker - 3P+N - 20A - curve C - 6000A/10kA
Reference: A9P24604
Acti9 iDT40N - modular circuit breaker - 1P+N - 4A - curve C - 6000A/10kA
