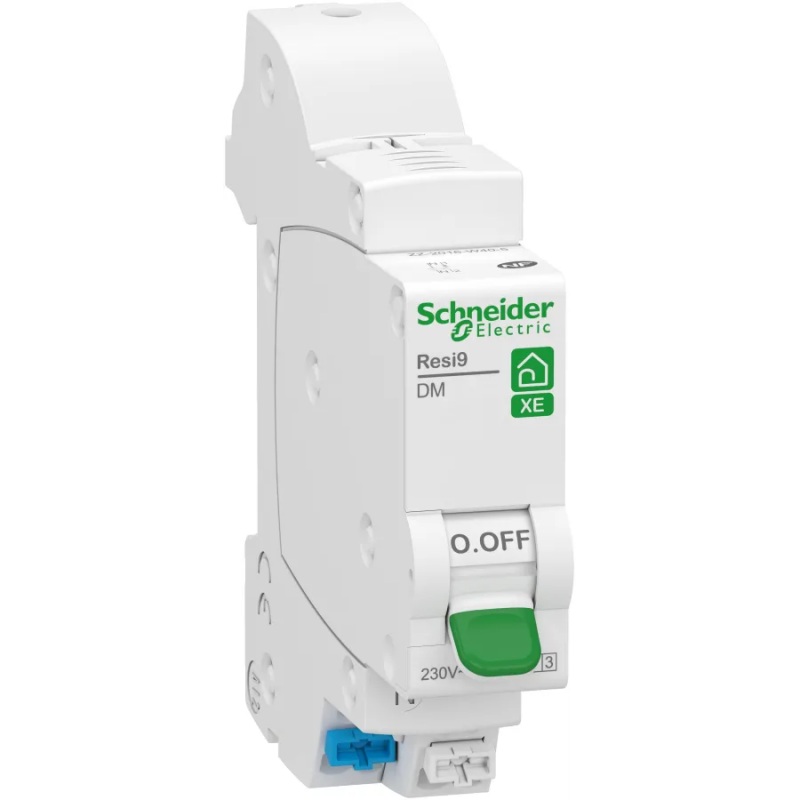

Circuit breaker 16A XE Resi9 - 1P+N - curve D - 3kA - 230V CA - plug-in

R9EFD616
3606481160454
Product line: Resi9 xe, Protection class (IP): IP20
€40.25
€37.83 Save 6%
Tax included Stock: 4 (+ on order) - Delivery within 9 working days in Europe - Price for 1u.
Quantity
In stock (4 u)

100% secure payments
Close
Description

Circuit breaker 16A XE Resi9 - 1P+N - curve D - 3kA - 230V CA - plug-in - R9EFD616

Circuit breaker 16A XE Resi9 - 1P+N - curve D - 3kA - 230V CA - plug-in
Protection class (IP)
IP20

main features - Schneider Electric R9EFD616

  • Product line: Resi9 xe
  • Protection class (IP): IP20
  • reference: Schneider Electric R9EFD616 / EAN: 3606481160454
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceR9EFD616
EAN3606481160454
Warranty2 years
Customs code85362010
Product lineResi9 xe
Electrical information
Type of voltageAC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules1.0
Width in number of modules1
Embedding depth44.0 mm
Embedding depth44 mm
Technical specifications
Calibre16.0 A
Calibre16 A
Overvoltage category3
Energy limitation class (I²t)3
CurveD
Degree of pollution2
Frequency50,0 Hz
Protection class (IP)IP20
Number of poles2.0
Number of poles2
Number of poles protected1.0
Number of poles protected1
Neutral pole simultaneously disconnectedYes
Section of connection cable rigid1,5 .. 2,5 mm²
Ambient temperature in operation-25,0 .. 40,0 °C
Ambient temperature in operation-25,0 40,0 °C
Tension230.0 V
Tension230 V
Rated impulse withstand voltage (Uimp)4.0 kV
Rated impulse withstand voltage (Uimp)4 kV
Rated insulation voltage (Ui)500.0 V
Rated insulation voltage (Ui)500 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric R9EFD616
documentationDeclaration of conformity - Schneider Electric R9EFD616
documentationProduct sheet - Schneider Electric R9EFD616
documentationEnvironmental profile - Schneider Electric R9EFD616
