| Manufacturer | Schneider Electric |

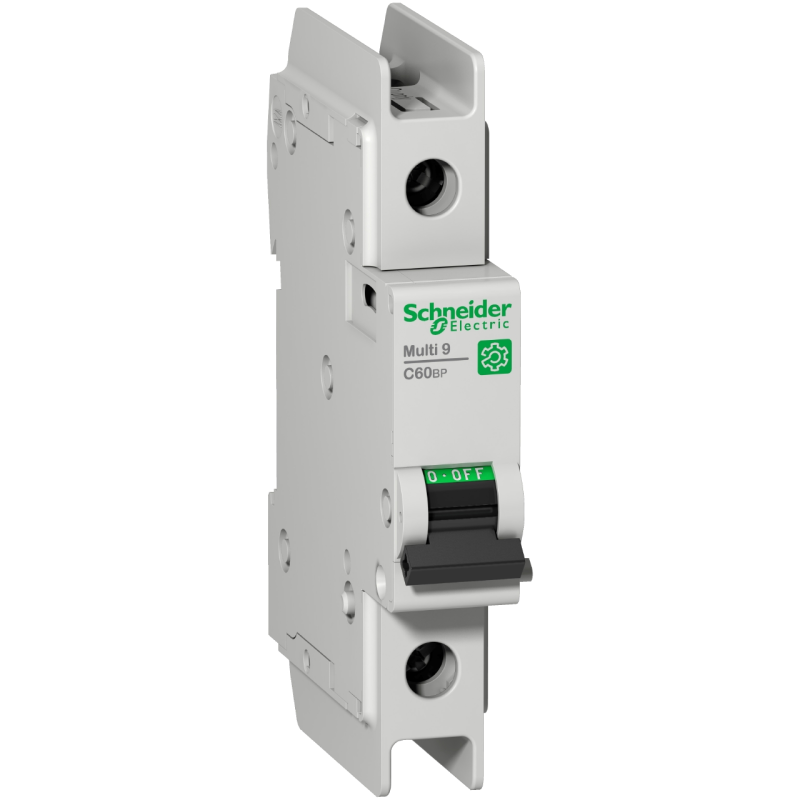

| Reference | M9F44104 |
| EAN | 3606481169464 |
| Customs code | 85362010 |
| Product line | Multi9 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | No |
| Width in number of modules | 2 |
| Embedding depth | 48 mm |
| Calibre | 4 A |
| Overvoltage category | 4 |
| Energy limitation class (I²t) | 3 |
| Curve | Z |
| Degree of pollution | 3 |
| Frequency | 50,0 .. 60,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 1 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 25,0 mm² |
| Ambient temperature in operation | -30,0 70,0 °C |
| Tension | 277 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500 V |
