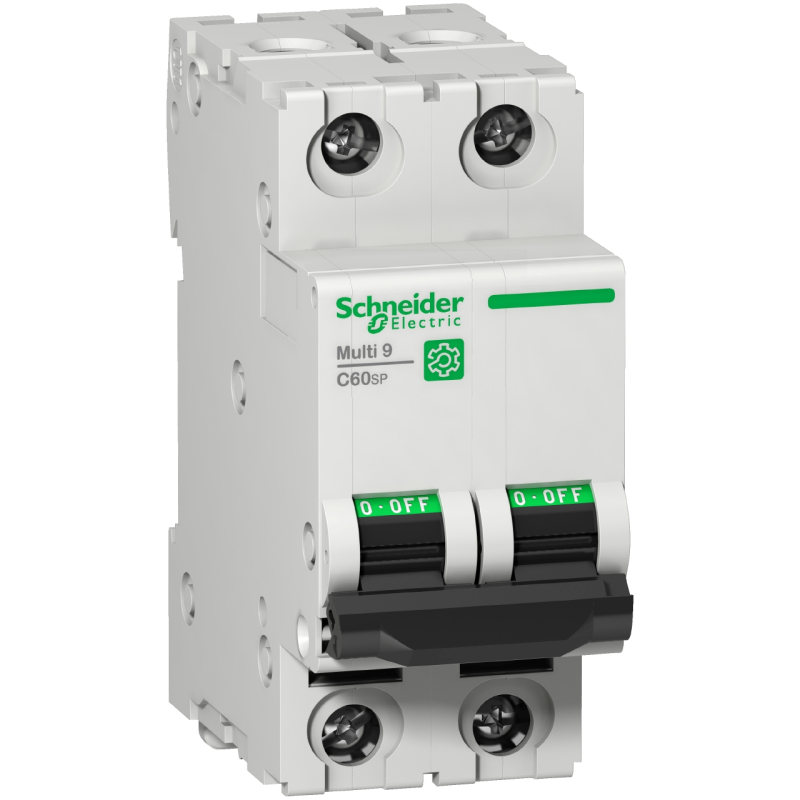

Miniature circuit breaker 20A Multi9 C60SP - 2 clusters - 10kA / 480Y-277V - curve B - standard UL1077

M9F21220
3606481167743
Product line: Multi9, Protection class (IP): IP20
€138.46
€81.69 Save 41%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Miniature circuit breaker 20A Multi9 C60SP - 2 clusters - 10kA / 480Y-277V - curve B - standard UL1077 - M9F21220

Miniature circuit breaker 20A Multi9 C60SP - 2 clusters - 10kA / 480Y-277V - curve B - standard UL1077
Protection class (IP)
IP20

main features - Schneider Electric M9F21220

  • Product line: Multi9
  • Protection class (IP): IP20
  • reference: Schneider Electric M9F21220 / EAN: 3606481167743
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceM9F21220
EAN3606481167743
Customs code85362010
Product lineMulti9
Electrical information
Type of voltageAC/DC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules4.0
Embedding depth44.0 mm
Technical specifications
Calibre20.0 A
Energy limitation class (I²t)3
CurveB
Frequency60,0 .. 50,0 Hz
Protection class (IP)IP20
Number of poles2.0
Number of poles protected2.0
Neutral pole simultaneously disconnectedYes
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 25,0 mm²
Ambient temperature in operation-30,0 .. 70,0 °C
Tension277.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)500.0 V
